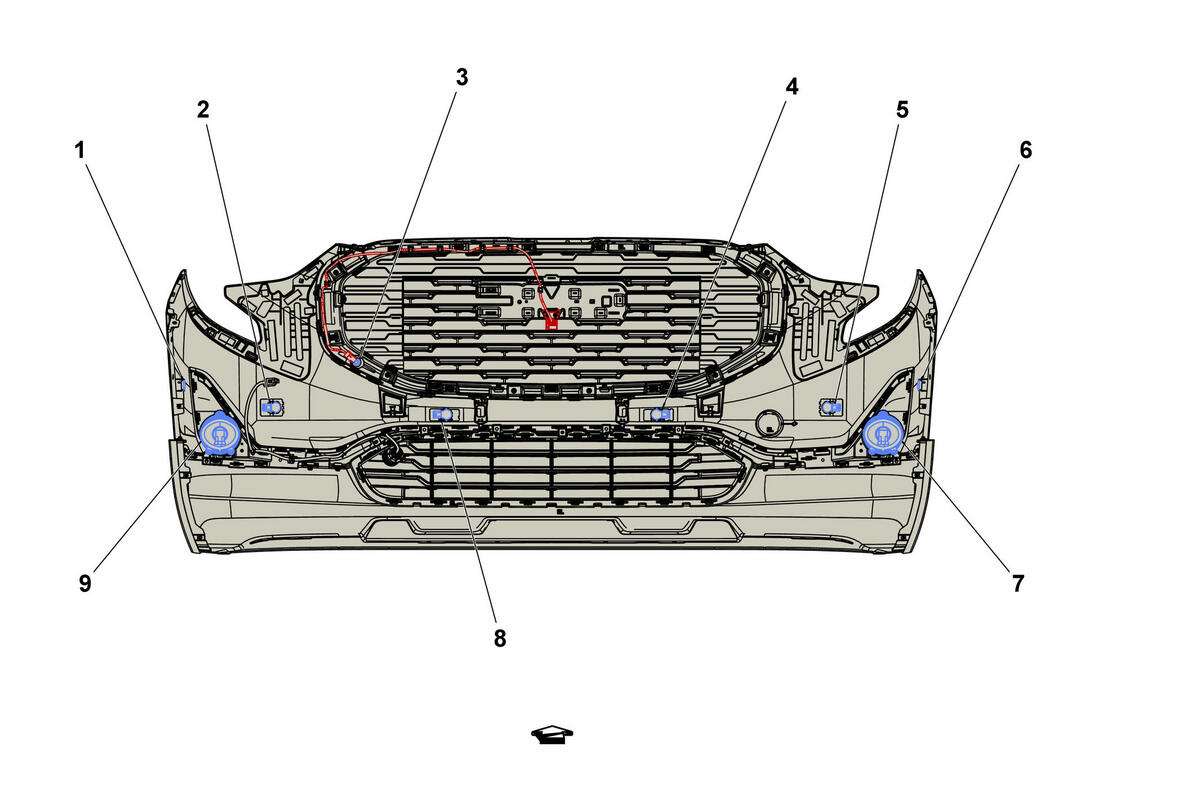

Behind the Front Fascia

WARNING: This page is about a different car, the 2021 GMC Terrain and 2021 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. B306K Parking Assist Sensor - Side Left Front (UFQ) B306K Parking Assist Sensor - Side Left Front (UFQ)
2. B306A Parking Assist Sensor - Front Left Outer (UD5/UFQ) B306A Parking Assist Sensor - Front Left Outer (UD5/UFQ)
3. B174G Frontview Camera - Grille (UVH) B174G Frontview Camera - Grille (UV2+V9V) , or B174G Frontview Camera - Grille (UV2-V9V)
4. B306C Parking Assist Sensor - Front Right Middle (UD5/UFQ) B306C Parking Assist Sensor - Front Right Middle (UD5/UFQ)
5. B306D Parking Assist Sensor - Front Right Outer (UD5/UFQ) B306D Parking Assist Sensor - Front Right Outer (UD5/UFQ)
6. B306L Parking Assist Sensor - Side Right Front (UFQ) B306L Parking Assist Sensor - Side Right Front (UFQ)
7. E29RF Fog Lamp - Right Front (T3U) E29RF Fog Lamp - Right Front (T3U+D2UG) , or E29RF Fog Lamp - Right Front (T3U-D2UG)
8. B306B Parking Assist Sensor - Front Left Middle (UD5/UFQ) B306B Parking Assist Sensor - Front Left Middle (UD5/UFQ)
9. E29LF Fog Lamp - Left Front (T3U) E29LF Fog Lamp - Left Front (T3U+D2UG) , or E29LF Fog Lamp - Left Front (T3U-D2UG)
