Special Tools

Illustration Tool Number/Description
GM3430Courtesy of GENERAL MOTORS COMPANY
 EL-39200 - B
Digital Multimeter
GM1984818Courtesy of GENERAL MOTORS COMPANY
 EL-49800 - A
HV Safety Kit
GM2223727Courtesy of GENERAL MOTORS COMPANY
 EL-49642
SPS Programming Support Tool
GM2630648Courtesy of GENERAL MOTORS COMPANY
 EL-50772
Insulation Multimeter

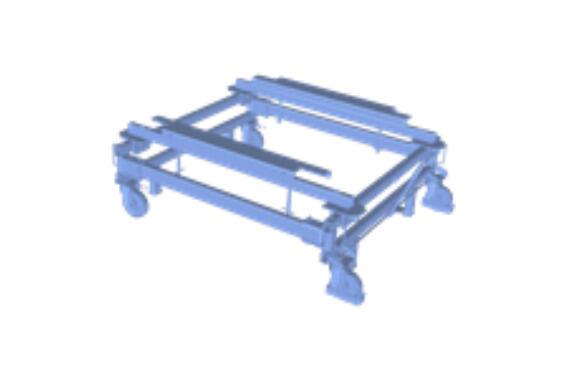

GM5810097Courtesy of GENERAL MOTORS COMPANY
 EL-53000
HV Battery Support Fixture
GM5906408Courtesy of GENERAL MOTORS COMPANY
 EL-53076
Battery Pack Coolant Passage Pressure Adapter
GM5812884Courtesy of GENERAL MOTORS COMPANY
 EL-53080
High Voltage Battery Pack Lifting System
GM5812899Courtesy of GENERAL MOTORS COMPANY
 EL-53097
EV Battery Lifting Eyebolts
GM5812768Courtesy of GENERAL MOTORS COMPANY
 EL-53152
HV Battery Alignment Pins
GM1617830Courtesy of GENERAL MOTORS COMPANY
 GE-47716
Vac N Fill Coolant Refill Tool
