Removal Procedure

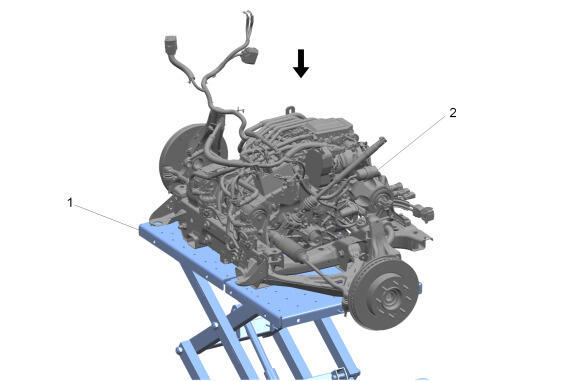

  1. GM5865279Courtesy of GENERAL MOTORS COMPANY

    Front Cradle (2) - Remove - Front Cradle Removal and Installation

  2. GM5900989Courtesy of GENERAL MOTORS COMPANY

    Rear Brake Front Pipe Nut (1) - Remove

  3. Front Brake Pipe Clip (2) - Remove [2x]
  4. GM5900990Courtesy of GENERAL MOTORS COMPANY

    Rear Brake Rear Pipe Nut (3) - Remove

  5. Front Brake Front Pipe- Right Side (2) @ Front Brake Pipe Clip (1) - Remove [3x]
  6. Maneuver the right front brake front pipe (2) out of the vehicle.
