Removal Procedure
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the left front tire and wheel assembly. Tire and Wheel Removal and Installation

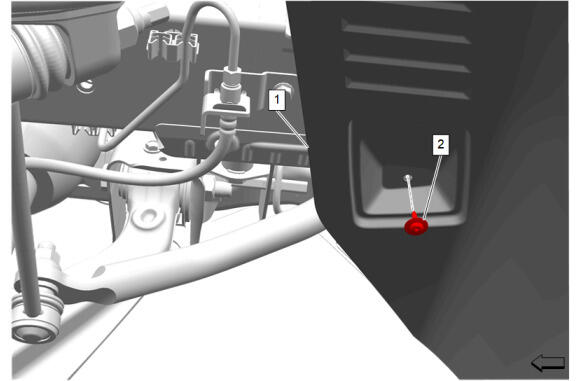

Front Wheelhouse Liner Bolt (2) - Remove
- Position the front wheelhouse rear liner (1) aside as needed to gain access to the left front brake front pipe.

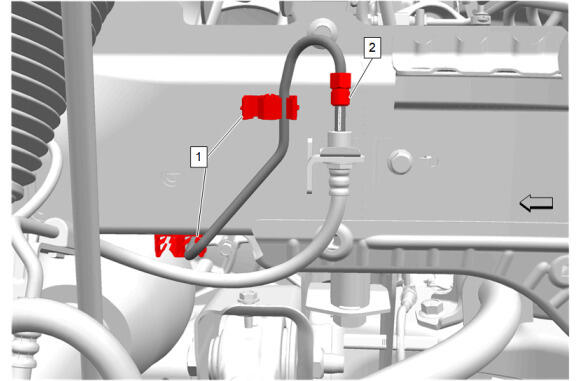

Rear Brake Rear Pipe Nut (2) - Remove
- Front Brake Pipe Clip (1) - Remove [2x]
- Plug the front brake hose inlet to avoid fluid loss and contamination.

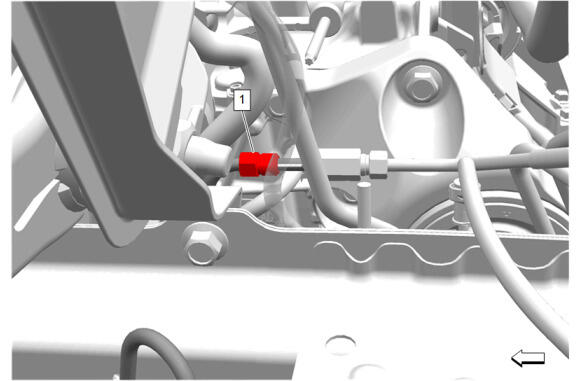

Rear Brake Rear Pipe Nut (1) - Remove
- Cap the front brake rear pipe outlet to avoid fluid loss and contamination.

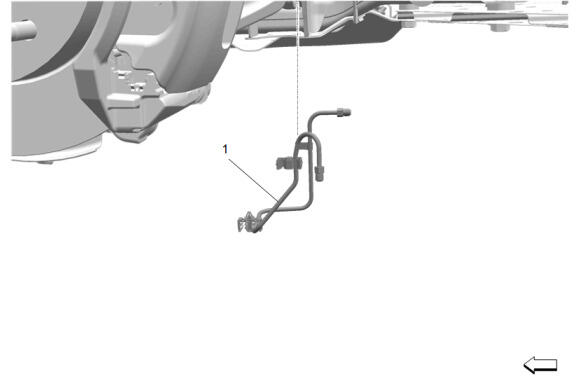

Remove the left front brake front pipe (1) from the vehicle.
