Installation Procedure

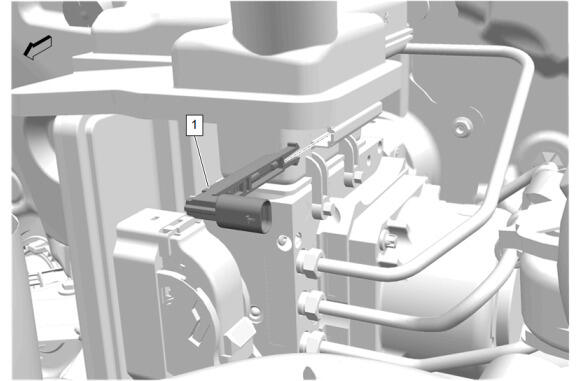

  1. GM5835320Courtesy of GENERAL MOTORS COMPANY

    Brake Fluid Level Indicator Switch (1) - Install

  2. Electrical Connector @ Brake Fluid Level Indicator Switch - Connect
  3. GM5787987Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Side Sight Shield (1) - Install

  4. GM5787985Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Side Sight Shield Retainer (1) - Install [3x]
