Fastener Specifications

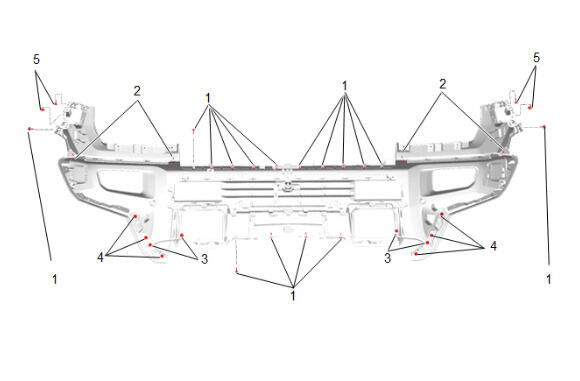

Front Bumper Fascia
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Bumper Fascia Bolt [6x] | - | - | 2.5 N.m (22 lb in) | Front Bumper Fascia Removal and Installation |
| 2 | Front Bumper Fascia Bolt [6x] | - | - | 2.5 N.m (22 lb in) | Front Bumper Upper Fascia Replacement |
| 3 | Front Bumper Fascia Bolt [6x] | - | - | 2.5 N.m (22 lb in) | Front Bumper Fascia Lower Bracket Replacement |
| 4 | Front Bumper Fascia Bolt [6x] | - | - | 2.5 N.m (22 lb in) | Front Bumper Fascia Lower Molding Replacement |
| 5 | Front Bumper Fascia Guide Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Front Bumper Fascia Guide Replacement |

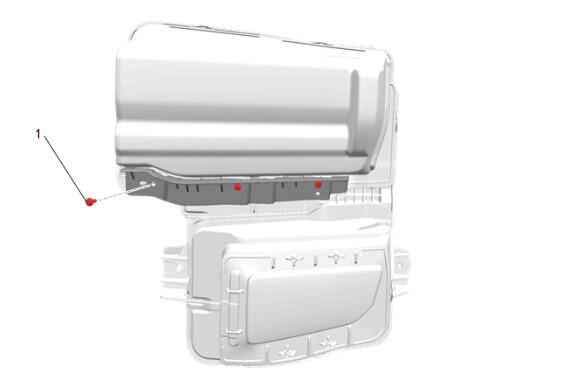

Front Bumper Fascia Lower Reinforcement
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Headlamp Bolt [3x] | - | - | 1.2 N.m (11 lb in) | Front Bumper Fascia Lower Reinforcement Replacement |

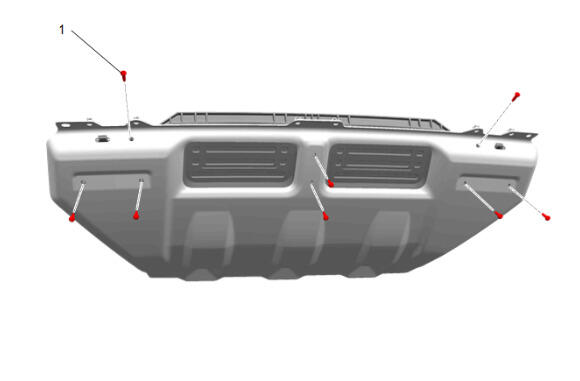

Front Bumper Fascia Skid Plate
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Bumper Fascia Bolt | - | - | 2.5 N.m (22 lb in) | Front Bumper Fascia Skid Plate Replacement |

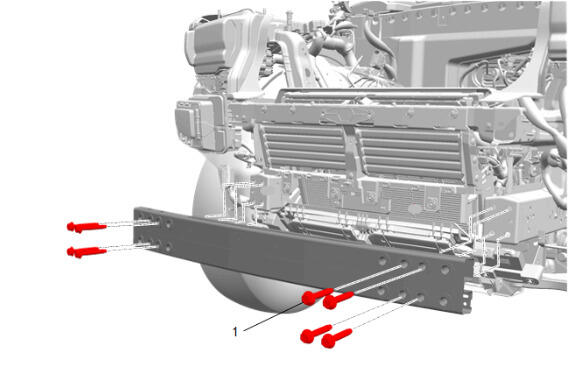

Front Bumper Impact Bar
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Bumper Impact Bar Bolt [8x] | - | - | 100 N.m (74 lb ft) | Front Bumper Impact Bar Replacement |

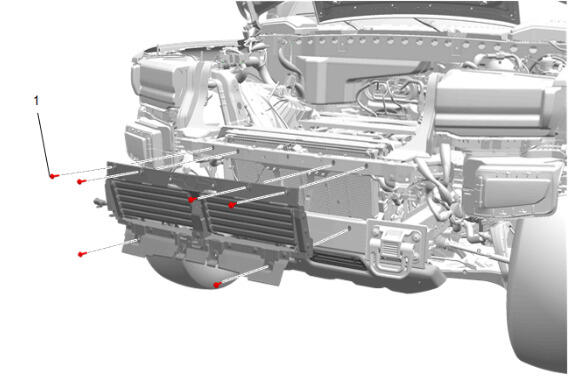

Front Bumper Lower Shutter
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Underbody Splash Shield Bolt [8x] | - | - | 6 N.m (53 lb in) | Front Bumper Lower Shutter Replacement |
Front Bumper Shutter
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Bumper Shutter Bolt [6x] | - | - | 9 N.m (80 lb in) | Front Bumper Shutter Replacement |

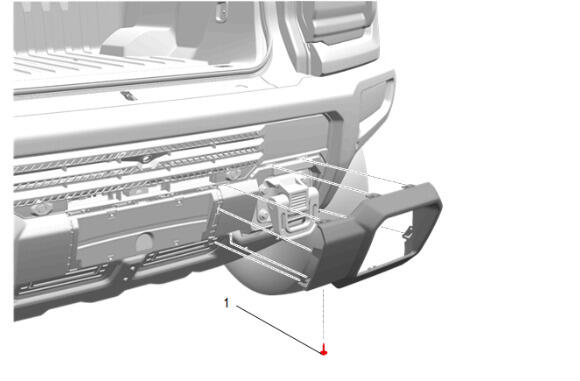

Rear Bumper Fascia
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Bumper Fascia Bolt [14x] | - | - | 2.5 N.m (22 lb in) | Rear Bumper Fascia Removal and Installation |

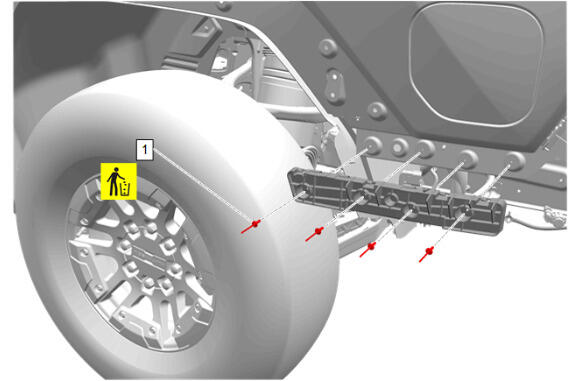

Rear Bumper Fascia Guide
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Bumper Fascia Guide Rivet [4x] | Yes | - | - | Rear Bumper Fascia Guide Replacement |

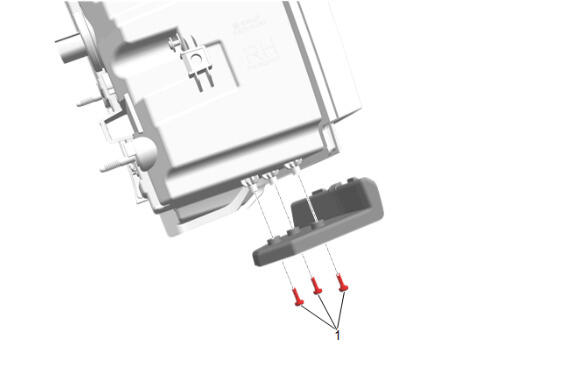

Rear Bumper Fascia Tail Lamp Opening Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Bumper Fascia Tail Lamp Opening Bracket Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Rear Bumper Fascia Tail Lamp Opening Bracket Replacement |

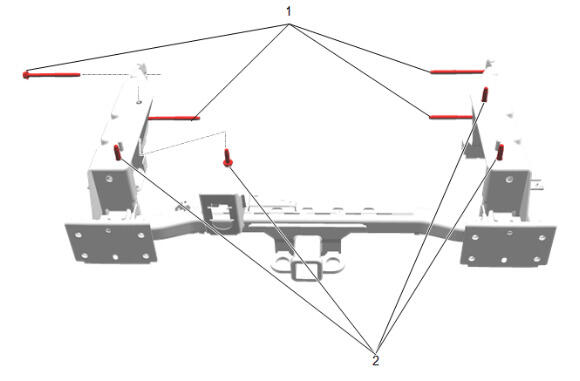

Rear Bumper Impact Bar
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Trailer Hitch Platform Bolt- Long [4x] |
- | - | 160 N.m (118 lb ft) | Rear Bumper Impact Bar Replacement |
| 2 | Trailer Hitch Platform Bolt- Short [4x] | - | - | 100 N.m (74 lb ft) | Rear Bumper Impact Bar Replacement |

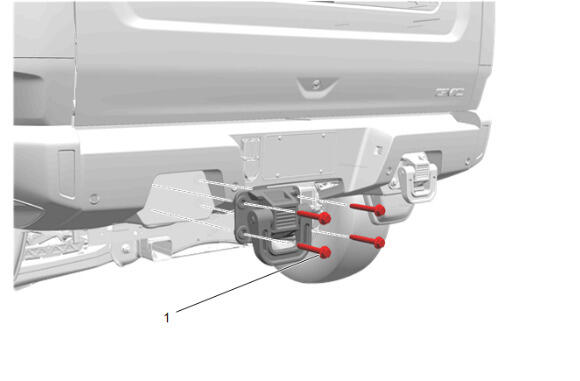

Rear Tow Hook
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Tow Hook Bolt [4x] | - | - | 100 N.m (74 lb ft) | Rear Bumper Fascia Removal and Installation |
