Removal Procedure

  1. Apply a double layer of masking tape around the perimeter of the painted surfaces.

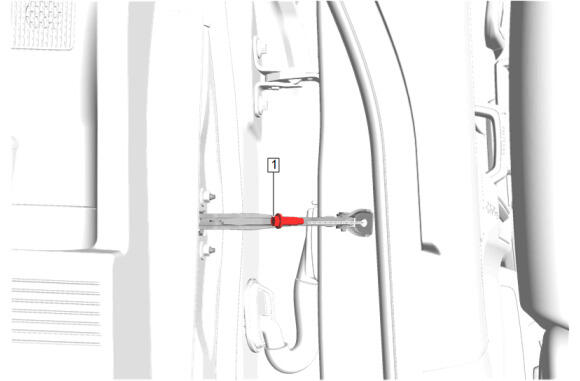

  2. GM5807933Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Check Link Bolt (1) - Remove

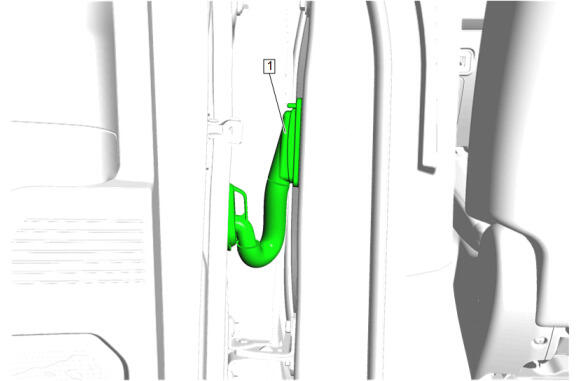

  3. GM5807932Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector. (1)

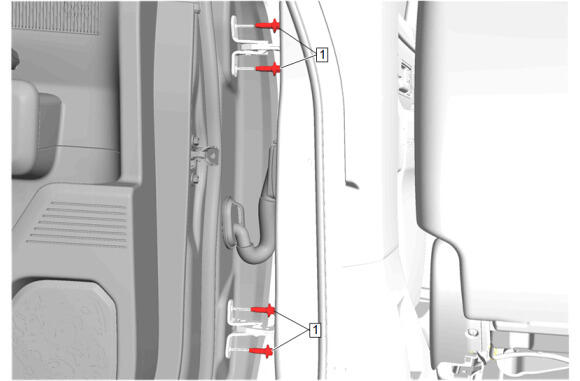

  4. GM5807930Courtesy of GENERAL MOTORS COMPANY

    Mark the location of the rear side door hinges with a grease pencil to aid in alignment during installation.

  5. Support the rear side door before removing the rear side door hinge bolts (1).
  6. Rear Side Door Hinge Bolt - Door Side (1) - Remove [4x]

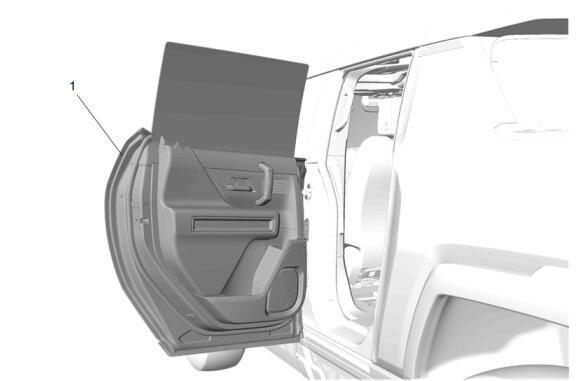

  7. GM5807934Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, remove the rear side door (1).
