Removal Procedure

  1. Rear Side Door Trim - Remove - Rear Side Door Trim Removal and Installation

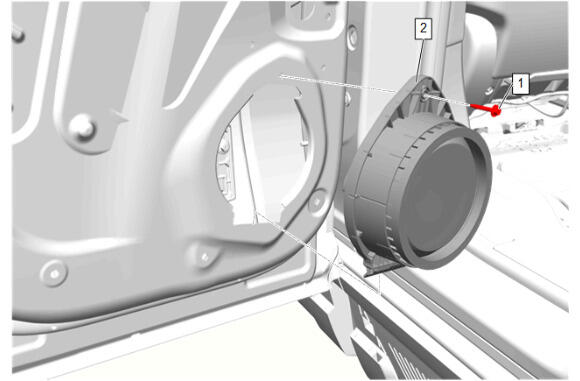

  2. GM5775325Courtesy of GENERAL MOTORS COMPANY
  3. Radio Rear Side Door Speaker Bolt (1) - Remove
  4. Radio Rear Side Door Speaker (2) - Remove
  5. Disconnect the electrical connector.

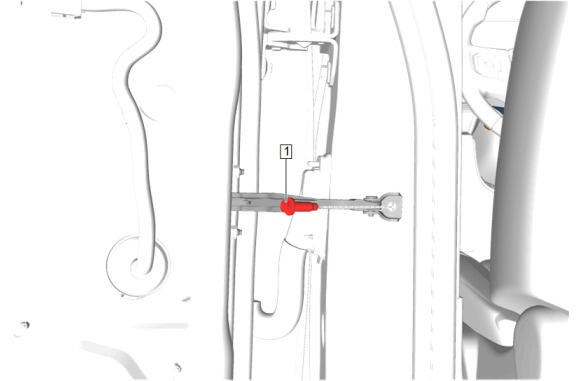

  6. GM5810950Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Check Link Bolt (1) - Remove

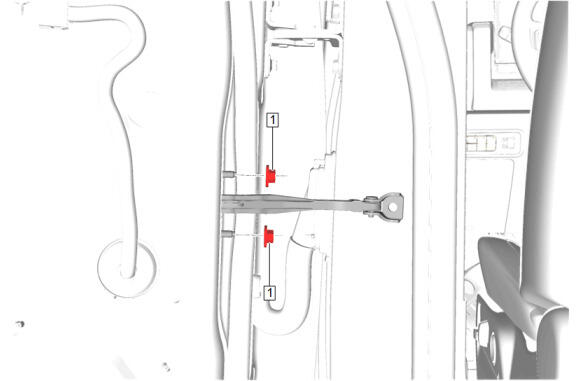

  7. GM5810947Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Check Link Nut (1) - Remove [2x]

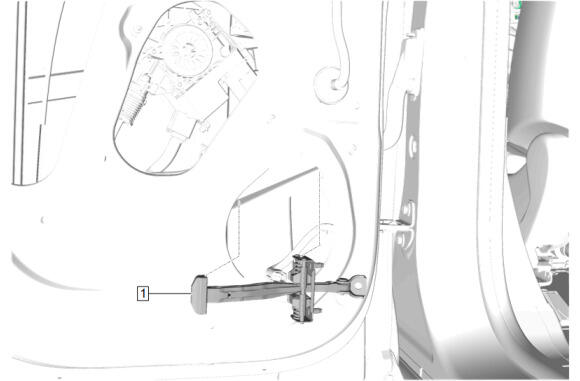

  8. GM5810944Courtesy of GENERAL MOTORS COMPANY

    Remove the rear side door check link (1) through the radio rear side door speaker hole.
