Removal Procedure

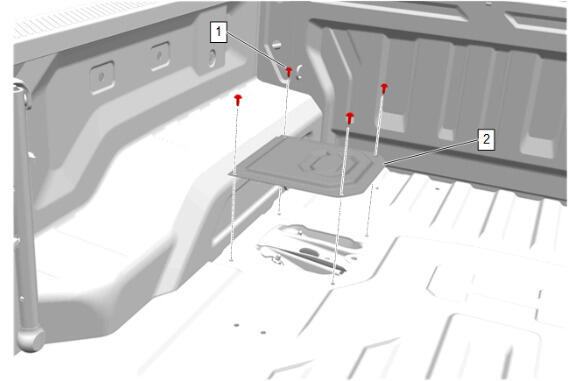

  1. GM5868324Courtesy of GENERAL MOTORS COMPANY

    Load Floor Rear Compartment Bolt (1) - Remove [4x]

  2. Rear Floor Panel Opening Cover (2) - Remove
