Removal Procedure

  1. GM5787366Courtesy of GENERAL MOTORS COMPANY

    Front Trim Finish Compartment (1) - Remove - Front Trim Finish Compartment Replacement

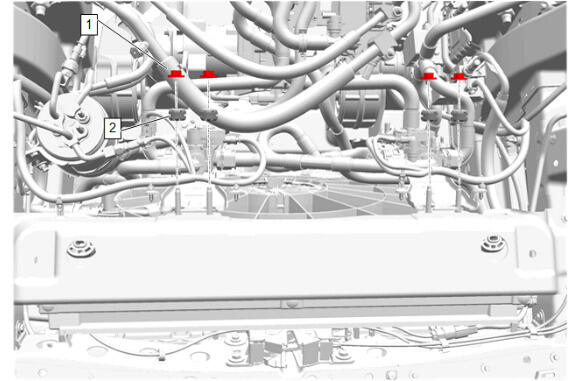

  2. GM5835069Courtesy of GENERAL MOTORS COMPANY

    Reposition the wiring harness.

  3. Drive Motor Battery Control Module Bracket Nut (1) - Remove [4x]
  4. Heater Water Shutoff Valve Bracket Insulator (2) - Remove [4x]

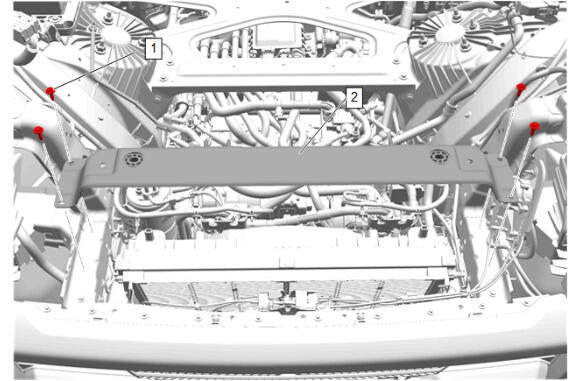

  5. GM5835071Courtesy of GENERAL MOTORS COMPANY

    Radiator Support Bolt (1) - Remove [4x]

  6. Radiator Upper Support (2) - Remove
