Removal Procedure

  1. Open and support the endgate.

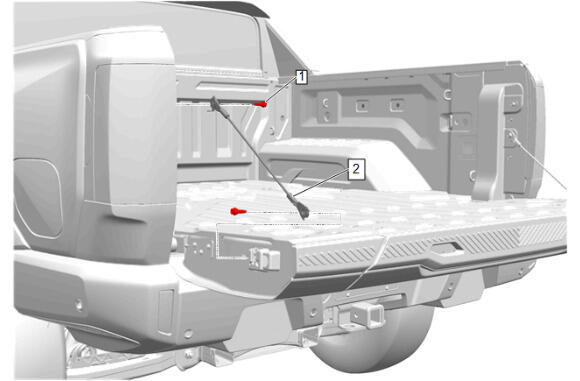

  2. GM5830361Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Latch Bolt (1) - Remove [2x]

  3. Pickup Box Endgate Cable (2) - Remove
