Pickup Box Endgate Access Hole Cover Replacement - Auxiliary Endgate Step: Notes

Removal Procedure

  1. Open and support the endgate.

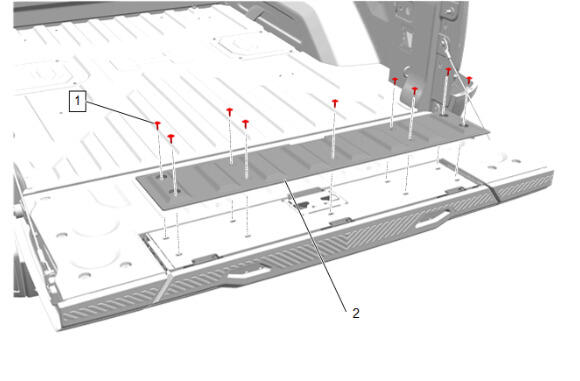

  2. GM5814846Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Access Hole Cover Panel Bolt (1) - Remove [9x]

  3. Pickup Box Endgate Access Hole Cover Panel (2) - Remove
