Removal Procedure

  1. Open the pickup box auxiliary endgate step.

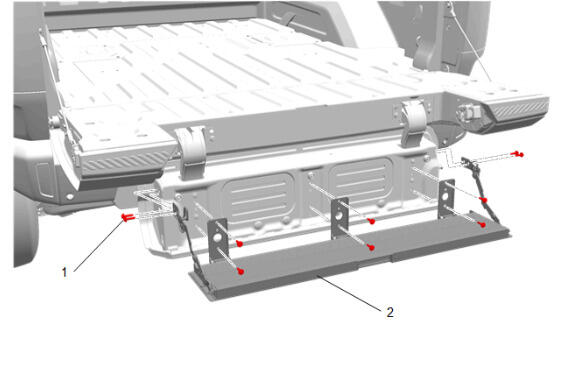

  2. GM5814841Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Auxiliary Endgate Hinge Bolt (1) - Remove [10x]

  3. Pickup Box Auxiliary Endgate Step (2) - Remove
