Installation Procedure

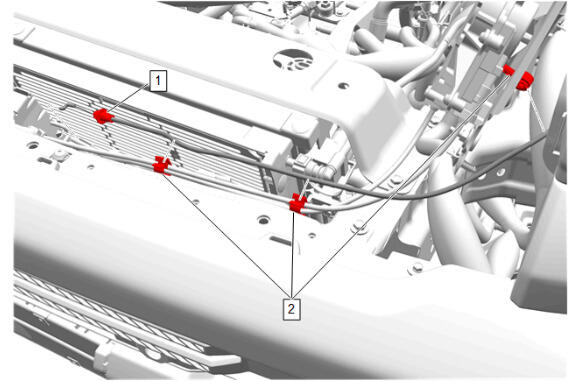

Attach the mechanics wire to the new hood primary and secondary latch release cable (2) and guide the cable in.
- Connect the hood primary and secondary latch release cable retainer (1) to the bracket.

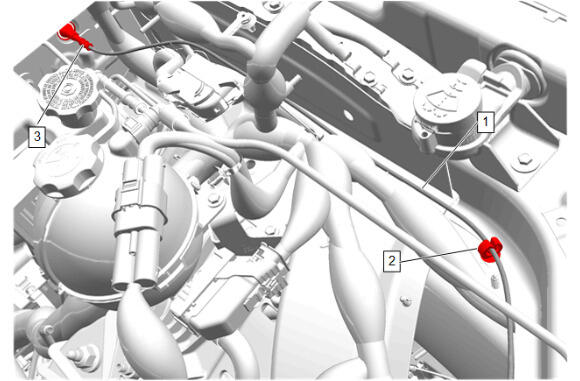

Install the hood primary and secondary latch release cable grommet (3).
- Install the hood primary and secondary latch release cable (1) to the hood primary and secondary latch release cable retainer (2).
Install the hood primary and secondary latch release cable to the 3 hood primary and secondary latch release cable retainers (2).

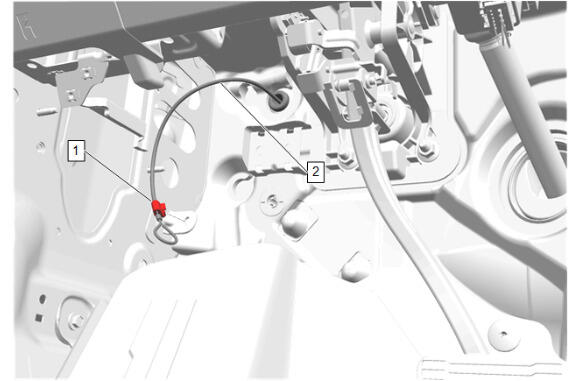

- Install the hood primary and secondary latch release cable end retainer (1) to the latch.
Front Trim Finish Compartment (2) - Install - Front Trim Finish Compartment Replacement
