Removal Procedure

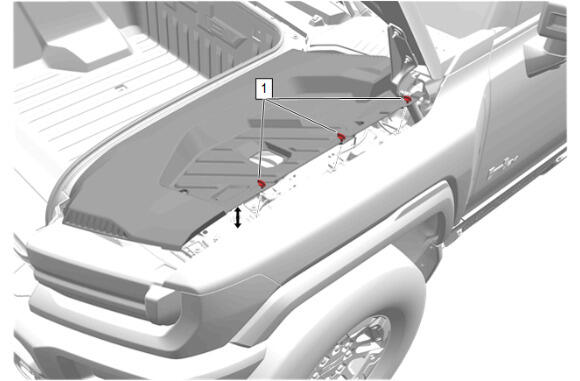

  1. GM5787985Courtesy of GENERAL MOTORS COMPANY

    Turn the 3 front compartment sight shield retainers (1) a quarter turn counter clockwise to release.

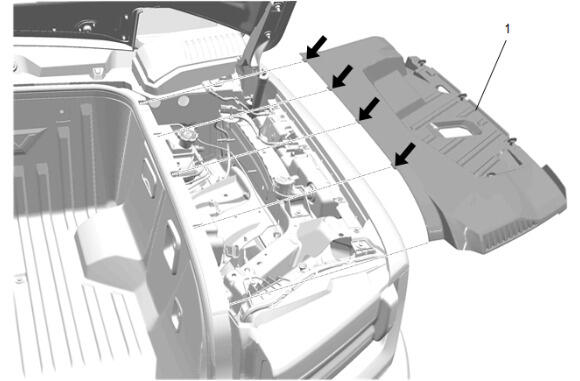

  2. GM5787987Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Side Sight Shield (1) - Remove

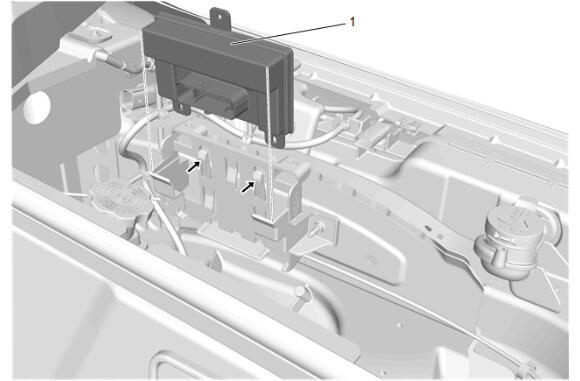

  3. GM5903621Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  4. Release the retaining tabs.
  5. Hood Control Module (1) - Remove
