Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Trim Finish Compartment (2) - Remove - Front Trim Finish Compartment Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Hood Primary and Secondary Latch Bolt (1) - Remove [2x]
Hood Primary and Secondary Latch (2) - Reposition
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Quantity of retainers may vary based on option content.

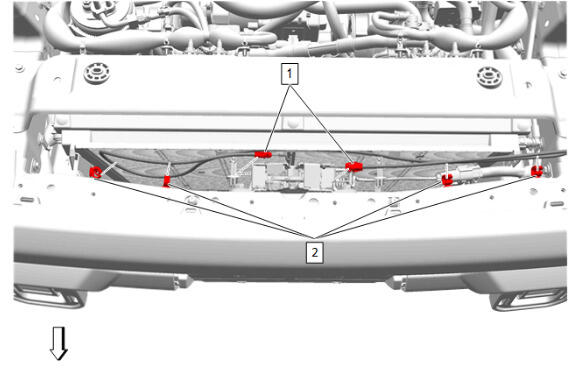

Front Stowage Compartment Latch Actuator Cable (1) - Remove [2x]
Release the front stowage compartment latch actuator cables (1) from the 6 hood latch actuator clips (2).
Courtesy of GENERAL MOTORS COMPANY

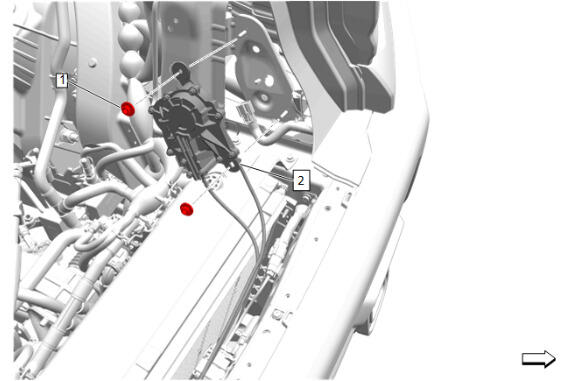

Hood Latch Actuator Nut (1) - Remove [2x]
Disconnect the electrical connector.
Front Stowage Compartment Latch Actuator (2) - Remove
