Removal Procedure

Disable the SIR system. SIR Disabling and Enabling
Front Side Door Trim - Remove - Front Side Door Trim Removal and Installation (Without Front Side Door Trim Bolt Cap) , or Front Side Door Trim Removal and Installation (With Front Side Door Trim Bolt Cap)
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Armrest Bracket Bolt (1) - Remove [3x]
Front Side Door Armrest Bracket (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Route front side door inside handle cable through hole in deflector (1).

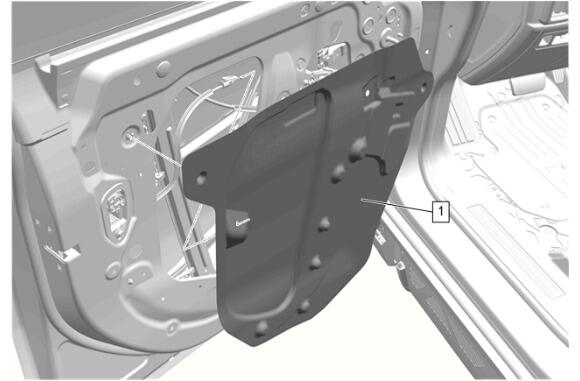

Front Side Door Water Deflector (1) - Remove
Courtesy of GENERAL MOTORS COMPANY
Radio Front Side Door Speaker Bolt (1) - Remove
Radio Front Side Door Speaker (2) - Remove
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

NOTE:

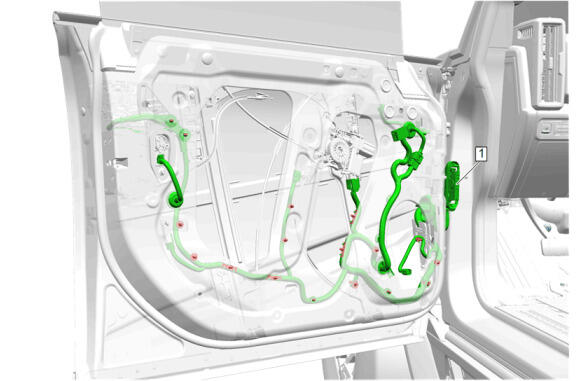

Typical wiring harness shown, individual harness may be different due to option content.
Front Side Door Wiring Harness (1) - Remove
