Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Use a flat bladed plastic trim tool.

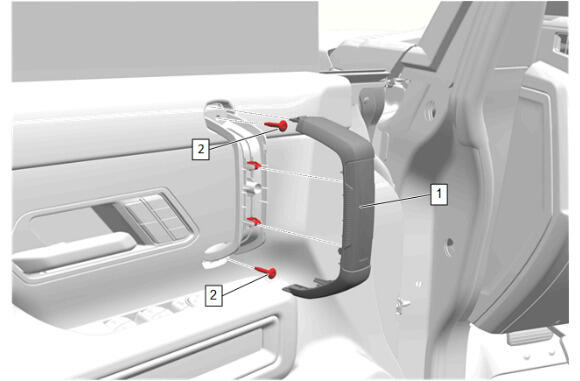

Front Side Door Armrest Pull Cup Bolt Cap (1) - Remove
Front Side Door Pull Handle Bolt (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Trim Panel Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

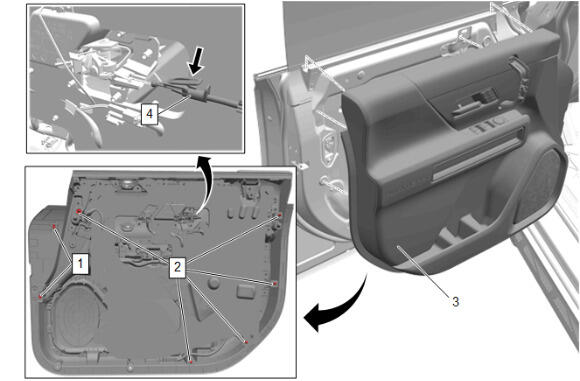

NOTE:
The front side door trim has an integral front side door trim assembly belt bracket that hooks over the front side door window inner sealing strip assembly.

Using an appropriate tool, start from the rear bottom corner and pull the front side door trim (3) from the sheet metal towards you to disengage perimeter retainers (2).
When the front side door trim (3) is sufficiently loosened, place an appropriate tool at the front portion of the door trim to disengage the remaining retainers (2) and clips (1).
Unhook the front side door trim (3) from the belt line, pulling the door trim upwards using both hands.
Disconnect the door lock retainer cable (4) from the front side door trim (3) and the inside handle.
Disconnect the electrical connectors.
Front Side Door Trim (3) - Remove
Place the front side door trim (3) on a clean flat surface.
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Check Link Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

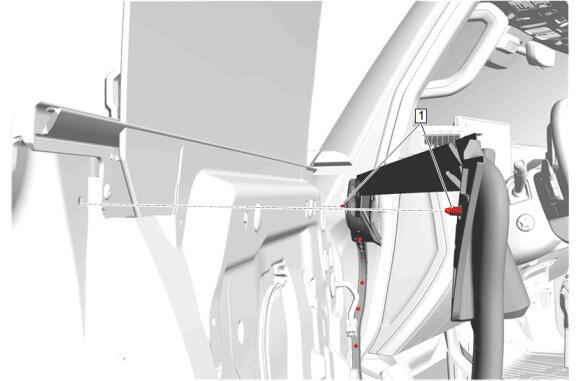

Using the appropriate tool, remove both outer weatherstrip retainers (1) from the front side door weatherstrip.
Courtesy of GENERAL MOTORS COMPANY

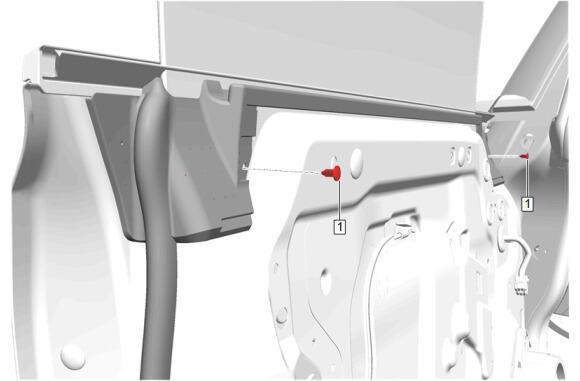

Remove both inner weatherstrip retainers (1) from the front side door panel.
Courtesy of GENERAL MOTORS COMPANY

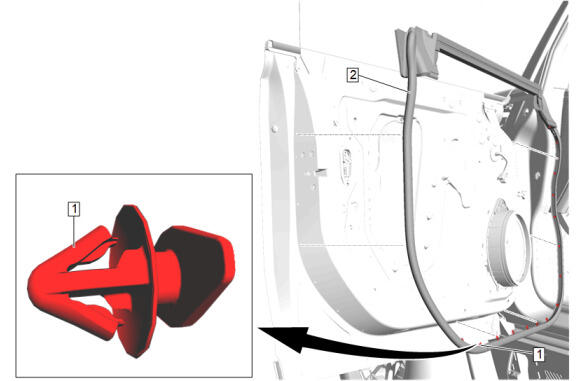

Remove the weatherstrip retainers (1) from around the front side door panel.
Front Side Door Weatherstrip - Door Side (2) - Remove
