Removal Procedure

  1. Apply a double layer of masking tape around the perimeter of the painted surfaces.

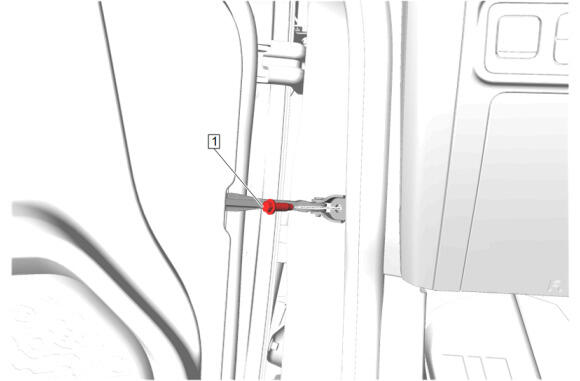

  2. GM5793899Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Check Link Bolt (1) - Remove

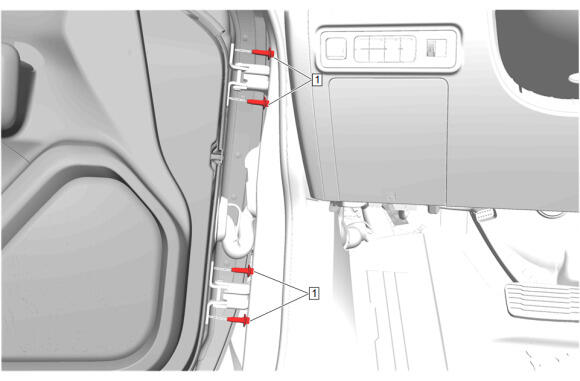

  3. GM5793983Courtesy of GENERAL MOTORS COMPANY

    Mark the location of the front side door hinges with a grease pencil to aid in alignment during installation.

  4. Support the door before removing the front side door hinge bolts (1).
  5. Front Side Door Hinge Bolt - Door Side (1) - Remove [4x]

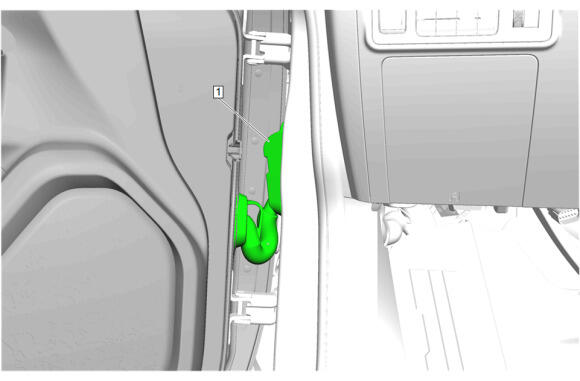

  6. GM5793985Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector. (1)

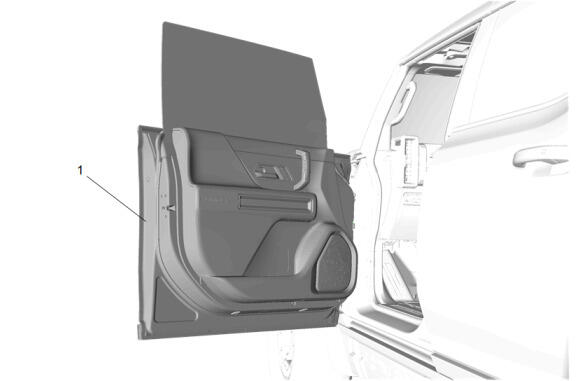

  7. GM5793987Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, remove the front side door. (1)

  8. Transfer components as necessary.
