Removal Procedure
Up/Down or In/Out Adjustment
- Apply a double layer of masking tape around the perimeter of the painted surfaces.
- Front Side Door Hinge Bolt - Door Side - Loosen
Do NOT remove the bolts from the door.

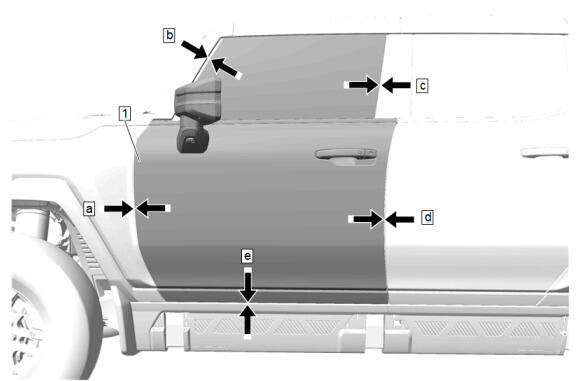

Adjust the front side door (1) up or down by repositioning the door as necessary.
- Front side door (1) to body side upper front applique (b) 10.0 mm ± 1.5 mm (0.39 in ± 0.59 in)
- Front side door (1) to rocker panel molding (e) 0.0 mm ± 0.5 mm (0.0 in ± 0.02 in)
- Adjust the front side door (1) in or out by repositioning the door as necessary.
- Front side door (1) to front fender (a) 4.0 mm ± 0.75 mm (0.16 in ± 0.29 in)
- Ensure the front side door weatherstrip to body side upper front applique gap (b) is consistent and the weatherstrip is fully seated.
- Ensure the front side door window frame rear applique and rear side door window frame front applique gap (c) is 10.0 mm ± 1.5 mm (0.39 in ± 0.59 in)
- Front side door (1) to rear side door (d) 4.0 mm ± 0.75 mm (0.16 in ± 0.29 in)
NOTE:
The door side upper and lower hinge bolts must remain tight enough to retain door adjusted position.
Fore/Aft Adjustment
- Front Side Door Hinge Bolt - Body Side - Loosen
Do NOT remove the bolts from the door.

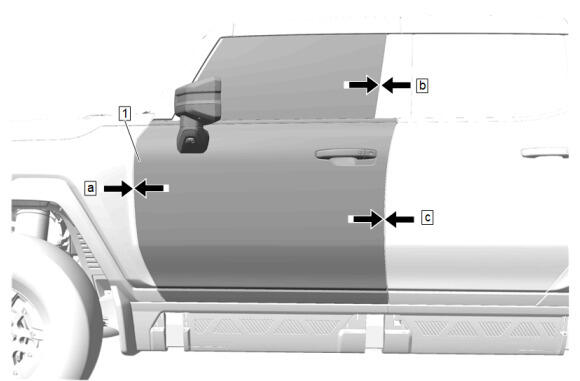

Adjust the front side door (1) fore and aft by repositioning the door as necessary.
- Front side door (1) to front fender (a) 4.0 mm ± 0.75 mm (0.16 in ± 0.29 in)
- Front side door (1) window frame rear applique to rear side door window frame front applique (b) 10.0 mm ± 1.5 mm (0.39 in ± 0.59 in)
- Front side door (1) to rear side door (c) 4.0 mm ± 0.75 mm (0.16 in ± 0.29 in)
NOTE:
The door side upper and lower hinge bolts must remain tight enough to retain door adjusted position.
