Installation Procedure

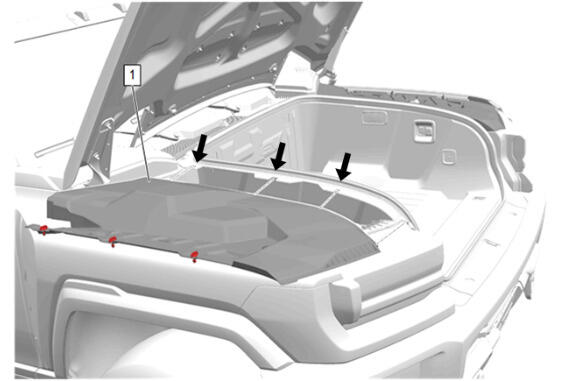

  1. GM5990102Courtesy of GENERAL MOTORS COMPANY

    Carefully align the front compartment side sight shield tabs. If care is not taken installing the shield, the retainer tabs will be damaged.

  2. Front Compartment Side Sight Shield- Right Side (1) - Install

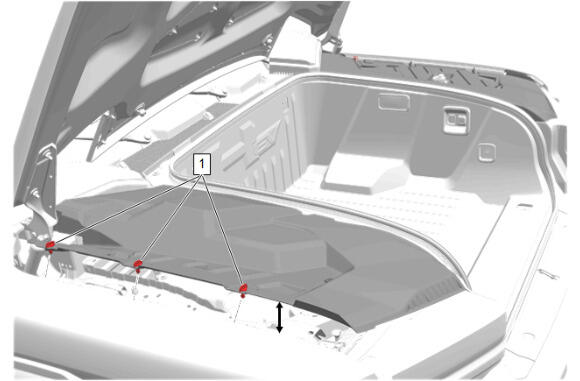

  3. GM5990101Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Side Sight Shield Retainer (1) - Install [3x]
