Removal Procedure

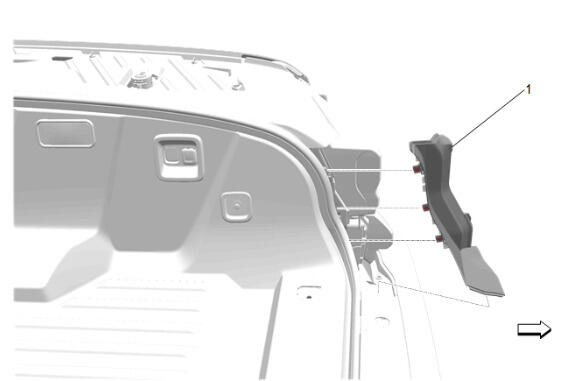

  1. GM5791729Courtesy of GENERAL MOTORS COMPANY

    Using the appropriate tool, release the 3 Integral clips.

  2. Front Compartment Side Sight Shield- Front (1) - Remove
