Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Install the 2 front compartment sight shield retainers to the shield.
Courtesy of GENERAL MOTORS COMPANY

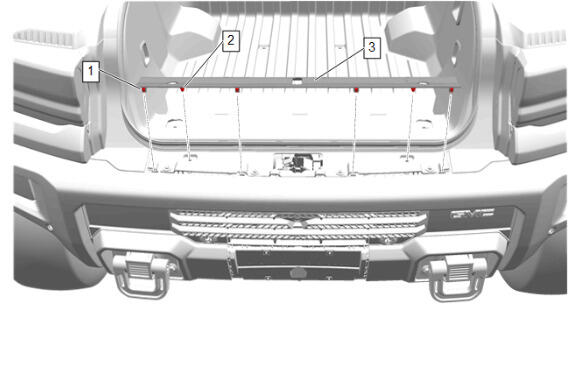

Front Compartment Front Sight Shield (3) - Install
Front Compartment Front Sight Shield Retainer (2) - Install [2x]
Front Compartment Front Sight Shield Clip (1) - Install [4x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Front Compartment Side Sight Shield- Left Side and Right Side- Front (1) - Install [2x]
