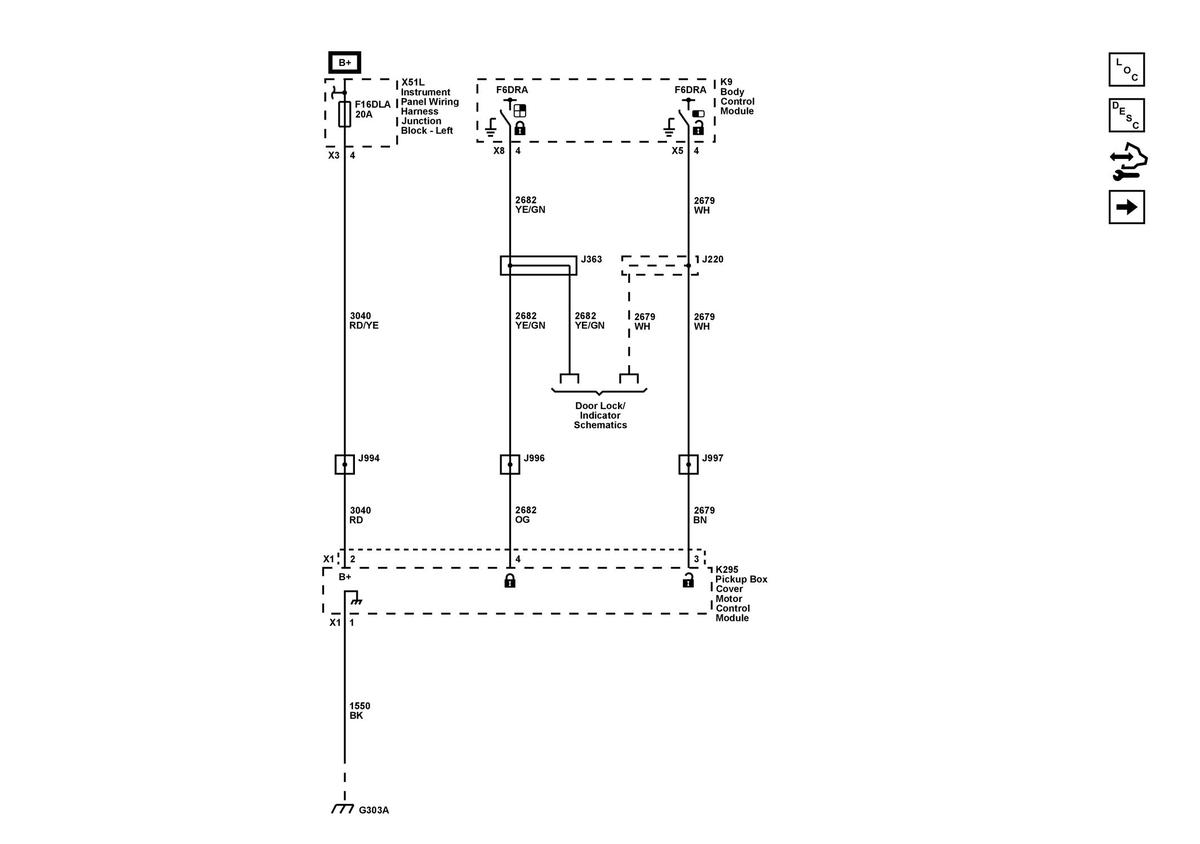

Pickup Box Cover - Power, Ground, and Lock Signals (5KM)

GM5867809

Courtesy of GENERAL MOTORS COMPANY
