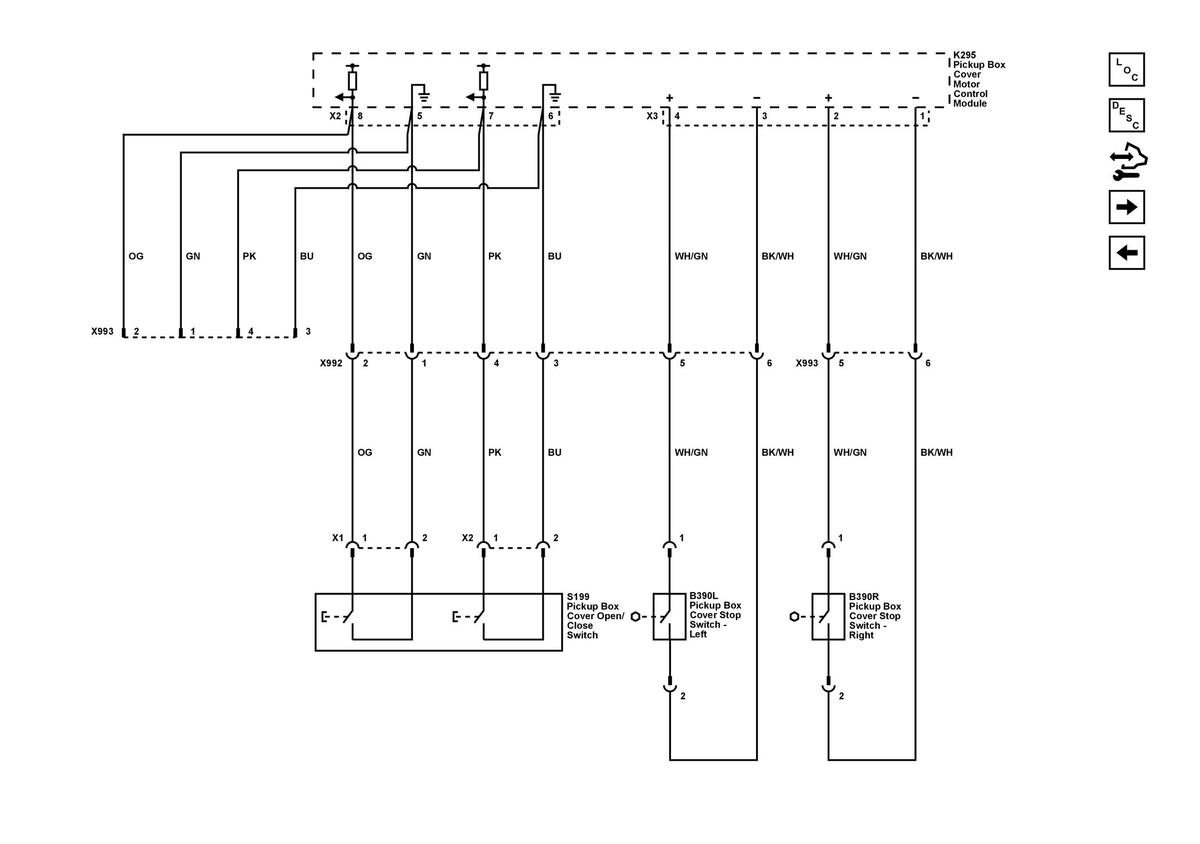

Home >> GMC >> 2022 >> Hummer EV >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Bolted Exterior Body Panels And Closures >> Schematic Wiring Diagrams >> Power Tonneau Cover Schematics >> Pickup Box Cover - Inputs (5KM)
