Removal Procedure

  1. Disable the SIR system. SIR Disabling and Enabling
  2. GM5775549
    NOTE:

    Left side shown, right side similar.

    Using a flat-bladed plastic trim tool, release the retaining clips on both sides of the vehicle.

  3. Instrument Panel Outer Trim Cover- Left Side and Right Side (1) - Remove [2x]
  4. GM5775858
    NOTE:

    Left side shown, right side similar.

    Reposition the weatherstrip as necessary.

  5. Use a flat-bladed plastic tool to disengage the retaining clip at the top of the body hinge pillar garnish molding (1) on both sides of the vehicle.
  6. Body Hinge Pillar Garnish Molding- Left Side and Right Side (1) - Remove [2x]
  7. GM5775868
    NOTE:

    Left side shown, right side similar.

    Use a flat bladed plastic tool to disengage the windshield pillar assist handle covers (1) from the windshield garnish molding on both sides of the vehicle.

  8. Windshield Pillar Assist Handle Cover- Left Side and Right Side (1) - Remove [4x]
  9. Windshield Pillar Assist Handle Bolt- Left Side and Right Side (2) - Remove [4x]
  10. GM5775880
    NOTE:

    Left side shown, right side similar.

    Using a flat-bladed plastic trim tool, release the retaining clips on both sides of the vehicle.

  11. Windshield Garnish Molding- Left Side and Right Side (1) - Remove [2x]
  12. Disconnect the electrical connector.
  13. GM5775849
    NOTE:

    Use a flat bladed plastic trim tool.

    Reposition the instrument panel extension (1) to access the electrical connector.

  14. Disconnect the electrical connector from the instrument panel extension (1).
  15. GM5775850

    Instrument Panel Extension (1) - Remove

  16. GM5811461

    Instrument Cluster Bolt (1) - Remove [4x]

  17. GM5811463

    Using a flat-bladed plastic trim tool, release the retaining clips.

  18. Reposition the instrument cluster (1) to access the electrical connector.
  19. Disconnect the electrical connector.
  20. Instrument Cluster (1) - Remove
  21. GM5758375

    Radio Front Center Speaker Bolt (1) - Remove [2x]

  22. Radio Front Center Speaker (2) - Remove
  23. Disconnect the electrical connector.
  24. GM5775313

    Disconnect the electrical connector.

  25. Using a suitable plastic trim tool, release the retaining tabs.
  26. Auxiliary Wireless Communication Interface Antenna (1) - Remove
  27. GM5775310

    Forward Collision Alert Display Bolt (1) - Remove [2x]

  28. Forward Collision Alert Display (2) - Remove
  29. Disconnect the electrical connector.
  30. GM5776099

    Remove the left and right front floor mat (1).

  31. GM5776100
    NOTE:

    Use a flat bladed plastic trim tool.

    Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Remove

  32. Front Floor Console Extension Bolt (2) - Remove
  33. GM5776101

    Move the front seat to access the retainers.

  34. Front Floor Console Extension Panel (1) - Remove
  35. GM5776103

    Using a flat-bladed plastic trim tool, release the retaining clips.

  36. Front Floor Console Lower Applique (1) - Remove
  37. GM6029241

    Tire Repair Sealer and Tire Air Compressor Retainer (1) - Remove

  38. Tire Air Compressor (2) - Remove
  39. GM6039681

    Rear Floor Mat (1) - Remove

  40. GM5776104

    Move the front seat to access the retainers.

    41. NOTE:

    Use a flat bladed plastic trim tool.

  41. Front Floor Console Bolt Access Hole Cover (1) - Remove
  42. Front Floor Console Retainer Bolt (2) - Remove [5x]
  43. GM5776102
    NOTE:

    Use a flat bladed plastic trim tool.

    Move the front seat to access the retainers.

  44. Front Floor Console Extension Panel (1) - Remove
  45. GM5777829

    Using a flat-bladed plastic trim tool, release the retaining clips.

  46. Front Floor Console Lower Applique (1) - Remove
  47. GM5776105

    Move the front seat to access the retainers.

    48. NOTE:

    Use a flat bladed plastic trim tool.

  48. Front Floor Console Bolt Access Hole Cover (1) - Remove
  49. Front Floor Console Retainer Bolt (2) - Remove [5x]
  50. GM5787899

    Disconnect the electrical connectors from the front floor console (1).

  51. Slide the front floor console (1) back enough to clear the instrument panel.
  52. GM5807063

    Instrument Panel Compartment Bolt (1) - Remove [5x]

  53. GM5807064

    Open the instrument panel compartment door.

  54. Instrument Panel Compartment Bolt (1) - Remove [3x]
  55. GM5807065

    Using a flat-bladed plastic trim tool, release the retaining clips.

  56. Instrument Panel Compartment (1) - Remove
  57. GM5765249

    Radio Front Speaker Grille Bolt (1) - Remove

  58. Using a suitable plastic trim tool, release the retaining tabs.
  59. Radio Front Speaker Grille- Left Side (2) - Remove
  60. GM5758372

    Radio Front Speaker Bolt (1) - Remove [2x]

  61. Radio Front Speaker- Left Side (2) - Remove
  62. Disconnect the electrical connector.
  63. GM5796820

    Instrument Panel Fuse Block Access Hole Cover (1) - Remove

  64. Instrument Panel Knee Bolster Bolt (2) - Remove [2x]
  65. GM5796821

    Using a flat-bladed plastic trim tool, release the retaining clips.

  66. Reposition the component to access the electrical connectors.
  67. Disconnect the electrical connectors.
  68. Instrument Panel Knee Bolster (1) - Remove
  69. GM5808418

    Instrument Panel Outer Air Outlet Bolt (1) - Remove [4x]

  70. GM5808419

    Using a suitable plastic trim tool, release the retaining tabs.

  71. Instrument Panel Air Outlet Bezel (1) - Remove
  72. GM5812952

    Instrument Panel Trim Pad Bolt (1) - Remove [3x]

  73. Using a flat-bladed plastic trim tool, release the retaining clips.
  74. Instrument Panel Trim Pad - Left Side (2) - Remove
  75. GM5807912

    Instrument Panel Lower Trim Panel Bolt (1) - Remove [6x]

  76. Using a flat-bladed plastic trim tool, release the retaining clips.
  77. Instrument Panel Lower Trim Panel (2) - Remove
  78. GM5764598

    Using a suitable plastic trim tool, release the retaining tab.

  79. Instrument Panel Bolt Cover (1) - Remove [2x]
  80. GM5764596

    Using a suitable plastic trim tool, release the retaining tabs.

  81. Instrument Panel Upper Trim Panel Cover (1) - Remove
  82. GM5764757

    Radio Control Bolt (1) - Remove [2x]

  83. GM5764761

    Radio Control Bolt (1) - Remove [2x]

  84. GM5764763

    Disconnect the electrical connectors.

  85. Radio Control (1) - Remove
  86. GM5765249
    NOTE:

    Left side shown, right side similar.

    Radio Front Speaker Grille Bolt (1) - Remove

  87. Using a suitable plastic trim tool, release the retaining tabs.
  88. Radio Front Speaker Grille- Right Side (2) - Remove
  89. GM5758372
    NOTE:

    Left side shown, right side similar.

    Radio Front Speaker Bolt (1) - Remove [2x]

  90. Radio Front Speaker- Right Side (2) - Remove
  91. Disconnect the electrical connector.
  92. GM5810876

    Instrument Panel Outer Air Outlet Bolt (1) - Remove [4x]

  93. GM5810877

    Using a suitable plastic trim tool, release the retaining tabs.

  94. Instrument Panel Air Outlet Bezel (1) - Remove
  95. GM5812560

    Instrument Panel Trim Plate Bolt (1) - Remove [2x]

  96. Using a flat-bladed plastic trim tool, release the retaining clips.
  97. Instrument Panel Trim Plate (2) - Remove
  98. GM5811494

    Instrument Panel Trim Pad Bolt (1) - Remove [8x]

  99. GM5811495

    Using a flat-bladed plastic trim tool, release the retaining clips.

  100. Reposition the instrument panel trim pad (1) to access the electrical connectors.
  101. Disconnect the electrical connectors.
  102. Instrument Panel Trim Pad - Right Side (1) - Remove
  103. GM5813376

    Instrument Panel Airbag Bolt (1) - Remove [3x]

  104. Disconnect the instrument panel airbag electrical connector from the instrument panel harness.
  105. Release the retainer.
  106. GM5814944

    Instrument Panel Upper Trim Panel Bolt (1) - Remove [11x]

  107. GM5814945
    NOTE:

    The instrument panel upper trim panel and instrument panel airbag will be removed as an assembly. Instrument panel airbag is a single use component. The airbag will need to be removed and scrapped.

    Using a flat-bladed plastic trim tool, release the retaining clips.

  108. With the aid of an assistant, remove the instrument panel upper trim panel (1).
    1. Pull the instrument panel upper trim panel (1) rearward to release it from the 4 front metal tabs and placing it above the retaining tabs.
    2. Push the instrument panel upper trim panel (1) forward and upward to access the 2 harness retainers.
    3. Release the 2 harness retainers.
    4. Remove the instrument panel upper trim panel (1).
  109. GM5813006

    Side Window Defogger Outlet Duct Bolt (1) - Remove [2x]

  110. Side Window Defogger Outlet Duct - Right Side (2) - Remove
  111. GM5813027

    Windshield Defroster Outlet Duct Bolt (1) - Remove [4x]

  112. GM5813028

    Windshield Defroster Outlet Duct Bolt (1) - Remove [4x]

  113. GM5813030

    Windshield Defroster Outlet Duct (1) - Remove

  114. GM5813008

    Side Window Defogger Outlet Duct Bolt (1) - Remove [3x]

  115. Side Window Defogger Outlet Duct - Left Side (2) - Remove

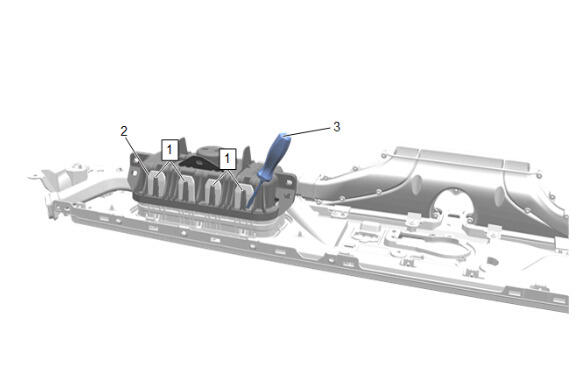

  116. GM5833055

    Insert the flat tip driver (3) in between the airbag chute (2) and the air bag module hook (1) at the dotted line or base of hook.

  117. Tilt the flat tip driver forward until the air bag module hooks (1) break or bend enough to relieve the tension and allow for easier removal of the airbag from the chute.

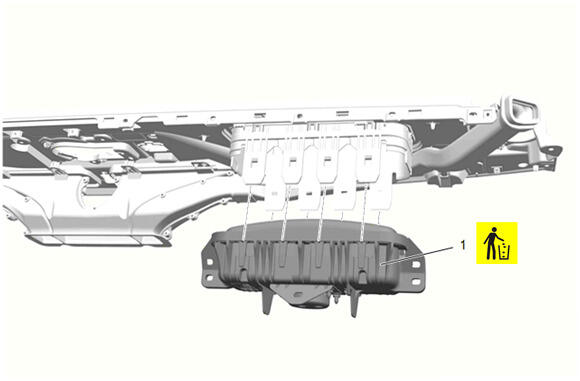

  118. GM5837266

    Instrument Panel Airbag (1) - Remove

  119. Properly dispose of the airbag module. Inflatable Restraint Module Handling and Scrapping
