Installation Procedure

  1. GM5814943
  2. With the aid of an assistant, install the instrument panel upper trim panel (1).
    1. Install the 2 harness retainers.
    2. Push the instrument panel upper trim panel (1) forward and downward to install placing it above the 4 front metal retaining tabs.
    3. Pull the instrument panel upper trim panel (1) rearward and push downward to install it into the 4 front metal tabs.
  3. Secure the retaining tabs.

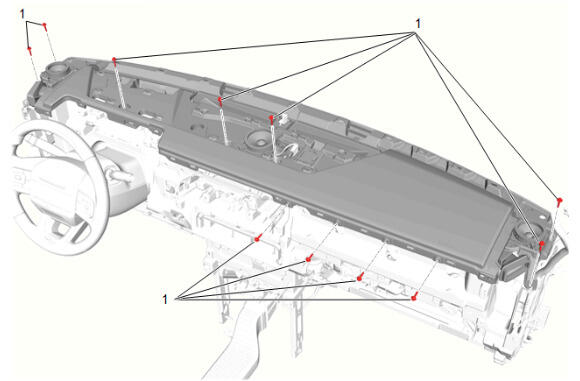

  4. GM5814942
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [11x] - Fastener Specifications

  5. GM5813376

    Instrument Panel Airbag Bolt (1) - Install and tighten [3x] - Fastener Specifications

  6. Connect the electrical connector.
  7. Install the retainer.
  8. GM5811495

    Connect the electrical connectors.

  9. Instrument Panel Trim Pad - Right Side (1) - Install
  10. GM5811494

    Instrument Panel Trim Pad Bolt (1) - Install and tighten [8x] - Fastener Specifications

  11. GM5812560

    Instrument Panel Trim Plate (2) - Install

  12. Instrument Panel Trim Plate Bolt (1) - Install and tighten [2x] - Fastener Specifications
  13. GM5810877

    Instrument Panel Air Outlet Bezel (1) - Install

  14. GM5810876

    Instrument Panel Outer Air Outlet Bolt (1) - Install and tighten [4x] Front End Upper Tie Bar Bolt Fastener Specifications

  15. GM5758372
    NOTE:

    Left side shown, right side similar.

    Connect the electrical connector.

  16. Radio Front Speaker- Right Side (2) - Install
  17. Radio Front Speaker Bolt (1) Install and tighten [2x] - Fastener Specifications
  18. GM5765249
    NOTE:

    Left side shown, right side similar.

    Radio Front Speaker Grille- Right Side (2) - Install

  19. Secure the retaining tabs.
  20. Radio Front Speaker Grille Bolt (1) - Install and tighten - Fastener Specifications
  21. GM5764763

    Connect the electrical connectors.

  22. Radio Control (1) - Install
  23. GM5764761

    Radio Control Bolt (1) - Install and tighten [2x] - Fastener Specifications

  24. GM5764757

    Radio Control Bolt (1) - Install and tighten [2x] - Fastener Specifications

  25. GM5764596

    Instrument Panel Upper Trim Panel Cover (1) - Install

  26. Secure the retaining tabs.
  27. GM5764598

    Instrument Panel Bolt Cover (1) - Install [2x]

  28. Secure the retaining tab.
  29. GM5807912

    Instrument Panel Lower Trim Panel (2) - Install

  30. Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications
  31. GM5812952

    Instrument Panel Trim Pad - Left Side (2) - Install

  32. Instrument Panel Trim Pad Bolt (1) - Install and tighten [3x] - Fastener Specifications
  33. GM5808419

    Instrument Panel Air Outlet Bezel (1) - Install

  34. GM5808418

    Instrument Panel Outer Air Outlet Bolt (1) - Install and tighten [4x] - Fastener Specifications

  35. GM5796821

    Connect the electrical connectors.

  36. Instrument Panel Knee Bolster (1) - Install
  37. GM5796820

    Instrument Panel Knee Bolster Bolt (2) - Install and tighten [2x] - Fastener Specifications

  38. Instrument Panel Fuse Block Access Hole Cover (1) - Install
  39. GM5758372

    Connect the electrical connector.

  40. Radio Front Speaker- Left Side (2) - Install
  41. Radio Front Speaker Bolt (1) Install and tighten [2x] - Fastener Specifications
  42. GM5765249

    Radio Front Speaker Grille- Left Side (2) - Install

  43. Secure the retaining tabs.
  44. Radio Front Speaker Grille Bolt (1) - Install and tighten - Fastener Specifications
  45. GM5807065

    Instrument Panel Compartment (1) - Install

  46. GM5807064

    Open the instrument panel compartment door.

  47. Instrument Panel Compartment Bolt (1) - Install and tighten [3x] - Fastener Specifications
  48. GM5807063

    Instrument Panel Compartment Bolt (1) - Install and tighten [5x] - Fastener Specifications

  49. GM5787899

    Front Floor Console (1) - Install

  50. Connect the electrical connectors to the front floor console (1).
  51. GM5776105

    Front Floor Console Retainer Bolt (2) - Install and tighten [5x] - Fastener Specifications

  52. Front Floor Console Bolt Access Hole Cover (1) - Install
  53. GM5777829

    Front Floor Console Lower Applique (1) - Install

  54. GM5776102

    Front Floor Console Extension Panel (1) - Install

  55. GM5776104

    Front Floor Console Retainer Bolt (2) - Install and tighten [5x] - Fastener Specifications

  56. Front Floor Console Bolt Access Hole Cover (1) - Install
  57. GM6039681

    Rear Floor Mat (1) - Install

  58. GM6029241

    Tire Air Compressor (2) - Install

  59. Tire Repair Sealer and Tire Air Compressor Retainer (1) - Install and hand tighten
  60. GM5776103

    Front Floor Console Lower Applique (1) - Install

  61. GM5776101

    Front Floor Console Extension Panel (1) - Install

  62. GM5776100

    Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications

  63. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
  64. GM5776099

    Install the left and right front floor mat (1).

  65. Return the seat to its original position.
  66. GM5775310

    Connect the electrical connector.

  67. Forward Collision Alert Display (2) - Install
  68. Forward Collision Alert Display Bolt (1) - Install and tighten [2x] - Fastener Specifications
  69. Connect the electrical connector to the auxiliary wireless communication interface antenna.
  70. GM5758375

    Connect the electrical connector.

  71. Radio Front Center Speaker (2) - Install
  72. Radio Front Center Speaker Bolt (1) Install and tighten [2x] - Fastener Specifications
  73. GM5811463

    Connect the electrical connector.

  74. Instrument Cluster (1) - Install
  75. GM5811461

    Instrument Cluster Bolt (1) - Install and tighten [4x] - Fastener Specifications

  76. GM5775850

    Connect the electrical connector.

  77. Instrument Panel Extension (1) - Install
  78. GM5775880
    NOTE:

    Left side shown, right side similar.

    Connect the electrical connector.

  79. Windshield Garnish Molding- Left Side and Right Side (1) - Install [2x]
  80. GM5775868
    NOTE:

    Left side shown, right side similar.

    Windshield Pillar Assist Handle Bolt- Left Side and Right Side (2) - Install and tighten [4x] - Fastener Specifications

  81. Windshield Pillar Assist Handle Cover- Left Side and Right Side (1) - Install [4x]
  82. GM5775858
    NOTE:

    Left side shown, right side similar.

    Body Hinge Pillar Garnish Molding- Left Side and Right Side (1) - Install [2x]

  83. Install the weatherstrip as necessary.
  84. GM5775549
    NOTE:

    Left side shown, right side similar.

    Instrument Panel Outer Trim Cover- Left Side and Right Side (1) - Install [2x]

  85. Enable the SIR System. SIR Disabling and Enabling
