Installation Procedure

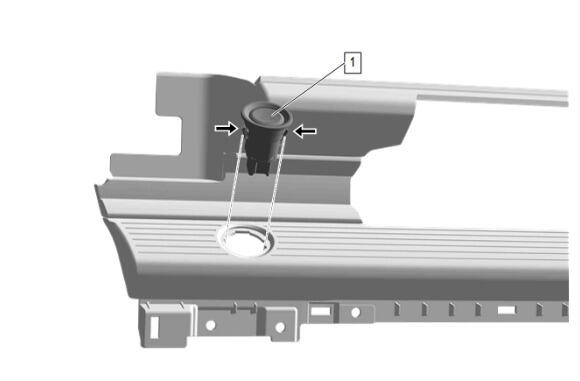

  1. GM5791775

    On/Off Vehicle Switch (1) - Install

  2. Secure the retaining tabs.

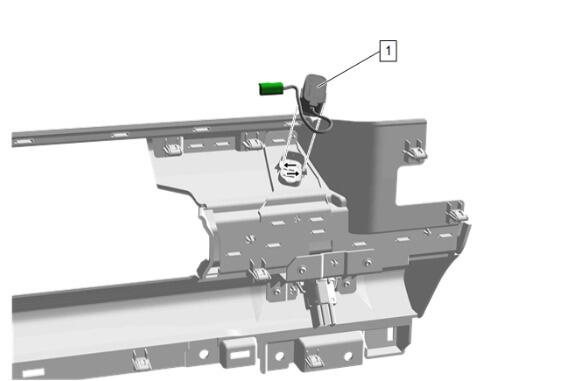

  3. GM5788655

    Communication Interface Module Microphone (1) - Install

  4. Secure the retaining tabs.

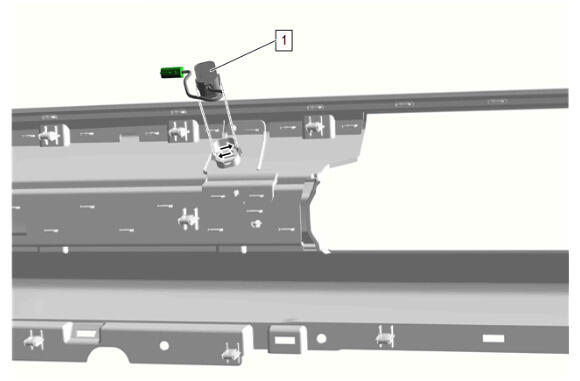

  5. GM5787158

    Mobile Telephone Microphone (1) - Install

  6. Secure the retaining tabs.
  7. GM5811495

    Connect the electrical connectors.

  8. Instrument Panel Trim Pad - Right Side (1) - Install
  9. GM5811494
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Trim Pad Bolt (1) - Install and tighten [8x] - Fastener Specifications

  10. GM5812560

    Instrument Panel Trim Plate (2) - Install

  11. Instrument Panel Trim Plate Bolt (1) - Install and tighten [2x] - Fastener Specifications
  12. GM5810877

    Instrument Panel Air Outlet Bezel (1) - Install

  13. GM5810876

    Instrument Panel Outer Air Outlet Bolt (1) - Install and tighten [4x] - Fastener Specifications

  14. GM5765249
    NOTE:

    Left side shown, right side similar.

    Radio Front Speaker Grille- Right Side (2) - Install

  15. Secure the retaining tabs.
  16. Radio Front Speaker Grille Bolt (1) - Install and tighten - Fastener Specifications
  17. GM5764763

    Connect the electrical connectors.

  18. Radio Control (1) - Install
  19. GM5764761

    Radio Control Bolt (1) - Install and tighten [2x] - Fastener Specifications

  20. GM5764757

    Radio Control Bolt (1) - Install and tighten [2x] - Fastener Specifications

  21. GM5764596

    Instrument Panel Upper Trim Panel Cover (1) - Install

  22. Secure the retaining tabs.
  23. GM5764598

    Instrument Panel Bolt Cover (1) - Install [2x]

  24. Secure the retaining tab.
  25. GM5807912

    Instrument Panel Lower Trim Panel (2) - Install

  26. Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications
  27. GM5796821

    Connect the electrical connectors.

  28. Instrument Panel Knee Bolster (1) - Install
  29. GM5796820

    Instrument Panel Knee Bolster Bolt (2) - Install and tighten [2x] - Fastener Specifications

  30. Instrument Panel Fuse Block Access Hole Cover (1) - Install
  31. GM5807065

    Instrument Panel Compartment (1) - Install

  32. GM5807064

    Open the instrument panel compartment door.

  33. Instrument Panel Compartment Bolt (1) - Install and tighten [3x] - Fastener Specifications
  34. GM5807063

    Instrument Panel Compartment Bolt (1) - Install and tighten [5x] - Fastener Specifications

  35. GM5787899

    Front Floor Console (1) - Install

  36. Connect the electrical connectors to the front floor console (1).
  37. GM5776105

    Front Floor Console Retainer Bolt (2) - Install and tighten [5x] - Fastener Specifications

  38. Front Floor Console Bolt Access Hole Cover (1) - Install
  39. GM5777829

    Front Floor Console Lower Applique (1) - Install

  40. GM5776102

    Front Floor Console Extension Panel (1) - Install

  41. GM5776104

    Front Floor Console Retainer Bolt (2) - Install and tighten [5x] - Fastener Specifications

  42. Front Floor Console Bolt Access Hole Cover (1) - Install
  43. GM6039681

    Rear Floor Mat (1) - Install

  44. GM6029241

    Tire Air Compressor (2) - Install

  45. Tire Repair Sealer and Tire Air Compressor Retainer (1) - Install and hand tighten
  46. GM5776103

    Front Floor Console Lower Applique (1) - Install

  47. GM5776101

    Front Floor Console Extension Panel (1) - Install

  48. GM5776100

    Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications

  49. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
  50. GM5776099

    Install the left and right front floor mat (1).

  51. Return the seat to its original position.
  52. GM5811463

    Connect the electrical connector.

  53. Instrument Cluster (1) - Install
  54. GM5811461

    Instrument Cluster Bolt (1) - Install and tighten [4x] - Fastener Specifications

  55. GM5775850

    Connect the electrical connector.

  56. Instrument Panel Extension (1) - Install
  57. GM5775880
    NOTE:

    Left side shown, right side similar.

    Connect the electrical connector.

  58. Windshield Garnish Molding- Left Side and Right Side (1) - Install [2x]
  59. GM5775868
    NOTE:

    Left side shown, right side similar.

    Windshield Pillar Assist Handle Bolt- Left Side and Right Side (2) - Install and tighten [4x] - Fastener Specifications

  60. Windshield Pillar Assist Handle Cover- Left Side and Right Side (1) - Install [4x]
  61. GM5775858
    NOTE:

    Left side shown, right side similar.

    Body Hinge Pillar Garnish Molding- Left Side and Right Side (1) - Install [2x]

  62. Install the weatherstrip as necessary.
  63. GM5775549
    NOTE:

    Left side shown, right side similar.

    Instrument Panel Outer Trim Cover- Left Side and Right Side (1) - Install [2x]
