Installation Procedure

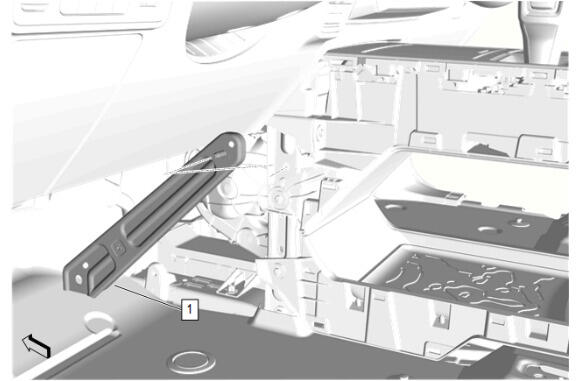

  1. GM5821307

    Instrument Panel Tie Bar Brace (1) - Install

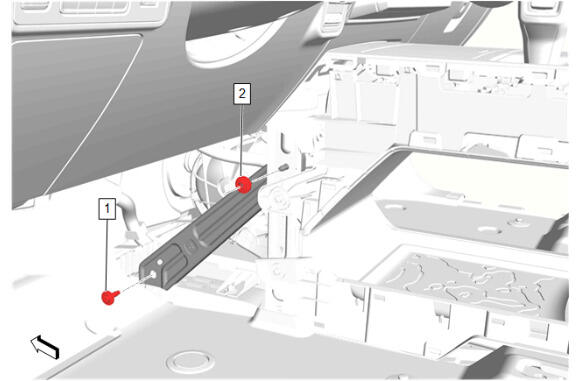

  2. GM5821306
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Tie Bar Bolt (1) - Install and tighten - Fastener Specifications

  3. Instrument Panel Tie Bar Bracket Nut (2) - Install and tighten - Fastener Specifications
  4. GM5776103

    Front Floor Console Lower Applique (1) - Install

  5. GM5776101

    Front Floor Console Extension Panel (1) - Install

  6. GM5776100

    Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications

  7. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
  8. GM5787901

    Install the left front floor mat (1).

  9. Return the seat to its original position.
