Installation Procedure

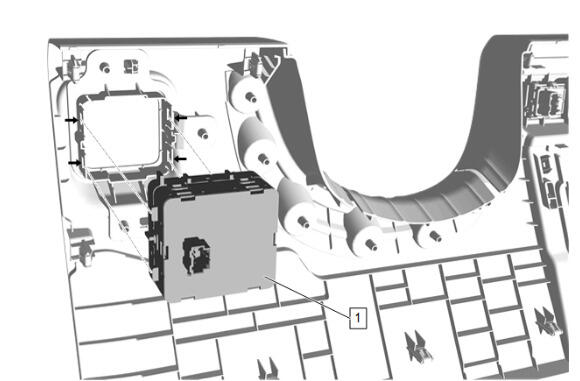

  1. GM5756689

    Trailer Brake Control Switch (1) - Install

  2. Secure the retaining tabs.

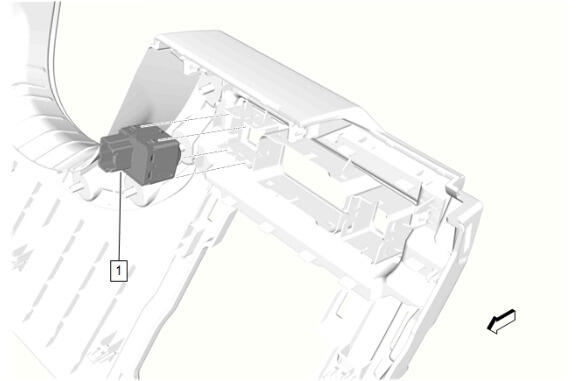

  3. GM5796824

    Dimmer Switch (1) - Install

  4. Secure the retaining tabs.

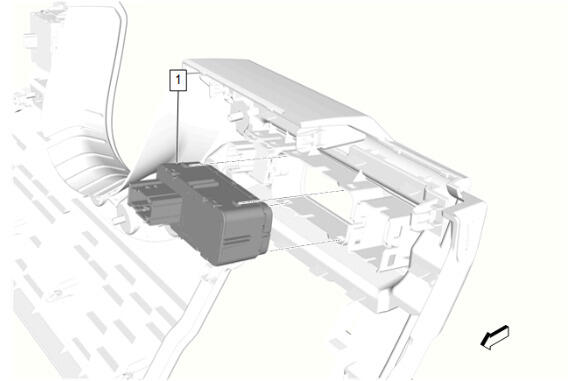

  5. GM5796823

    Accessory Power Receptacle Switch (1) - Install

  6. Secure the retaining tabs.

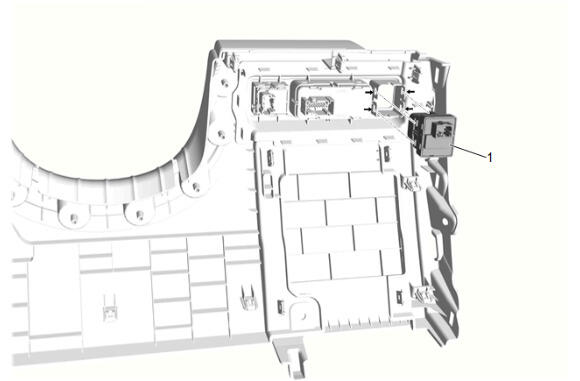

  7. GM5756575

    Parking Brake Control Switch (1) - Install

  8. Secure the retaining tabs.
  9. GM5796821

    Connect the electrical connectors.

  10. Instrument Panel Knee Bolster (1) - Install
  11. GM5796820
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Knee Bolster Bolt (2) - Install and tighten [2x] - Fastener Specifications

  12. Instrument Panel Fuse Block Access Hole Cover (1) - Install
  13. GM5775549

    Instrument Panel Outer Trim Cover (1) - Install
