Installation Procedure
- NOTE:

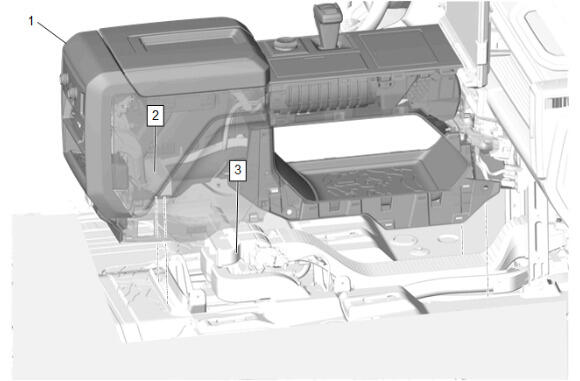

DO NOT load the front floor console (1) on an angle otherwise you will pinch the front floor console rear air rear duct (2).
With the aid of an assistant, carefully lower the front floor console (1) into the vehicle. So that the front floor console rear air rear duct (2) is behind the floor rear air distributor (3).
- Connect and position the wiring harness.

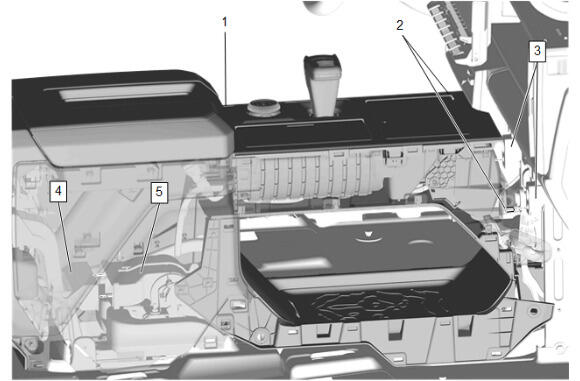

Carefully slide the front floor console (1) forward to position the front floor console locator pins (2) are about 1 inch away from the tie bar console brackets (3).
- Once the front floor console locator pins (2) are aligned with the tie bar console brackets (3), guide the front floor console (1) along with the front floor console rear air rear duct (4) forward into the floor rear air distributor (5) and tie bar console brackets.
- CAUTION:
Refer to Fastener Caution .
Front Floor Console Retainer Bolt (2) - Install and tighten [5x] - Fastener Specifications
- Front Floor Console Bolt Access Hole Cover (1) - Install
Front Floor Console Lower Applique (1) - Install
Front Floor Console Extension Panel (1) - Install
Front Floor Console Retainer Bolt (2) - Install and tighten [5x] - Fastener Specifications
- Front Floor Console Bolt Access Hole Cover (1) - Install
Rear Floor Mat (1) - Install
Tire Air Compressor (2) - Install
- Tire Repair Sealer and Tire Air Compressor Retainer (1) - Install and hand tighten
Front Floor Console Lower Applique (1) - Install
Front Floor Console Extension Panel (1) - Install
Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
- Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
Install the left and right front floor mat (1).
- Return the seat to its original position.
