Installation Procedure

  1. GM5776103

    Front Floor Console Lower Applique (1) - Install

  2. GM5776101

    Front Floor Console Extension Panel (1) - Install

  3. GM5776100
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications

  4. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install

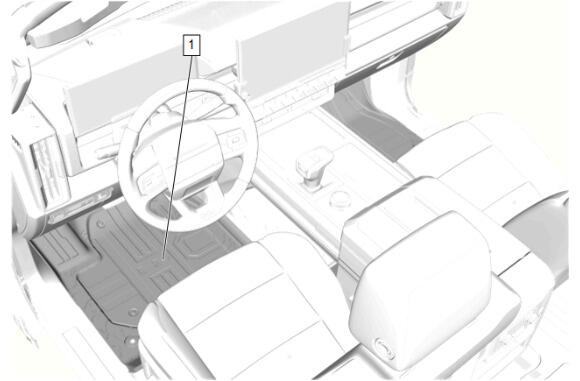

  5. GM5787901

    Install the left front floor mat (1).

  6. Return the seat to its original position.
