Removal Procedure

  1. GM5787366

    Front Trim Finish Compartment (2) - Remove - Front Trim Finish Compartment Removal and Installation

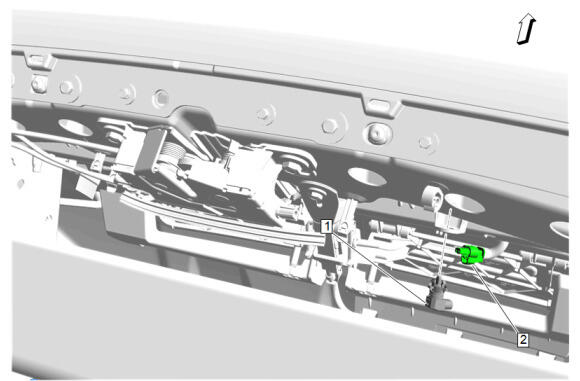

  2. GM5823899
    NOTE:

    Some components not shown for graphic clarity.

    Ambient Air Temperature Sensor (1) - Remove

  3. Disconnect the electrical connector. (2)
