Front Bumper Fascia Center Support Replacement - Upper

Courtesy of GENERAL MOTORS COMPANY

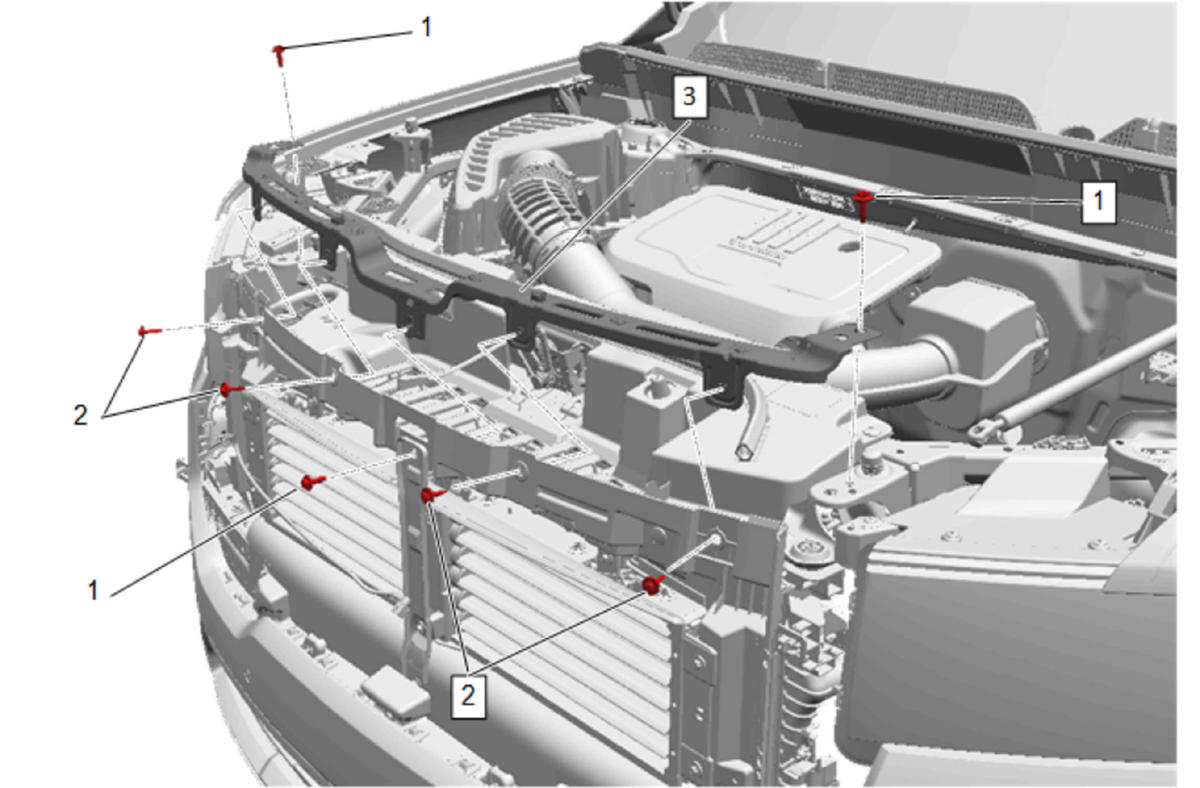

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Removal and Installation
1	Front Bumper Fascia Center Support Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Radiator Air Front Upper Baffle Bolt [4x] Tighten  2.5 N.m (22 lb in)
3	Front Bumper Fascia Center Support - Upper
