Home >> GMC >> 2022 >> Acadia SLE, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel And Console Trim >> Repair Instructions >> Instrument Panel Tie Bar Bracket Replacement >> Installation Procedure

Installation Procedure

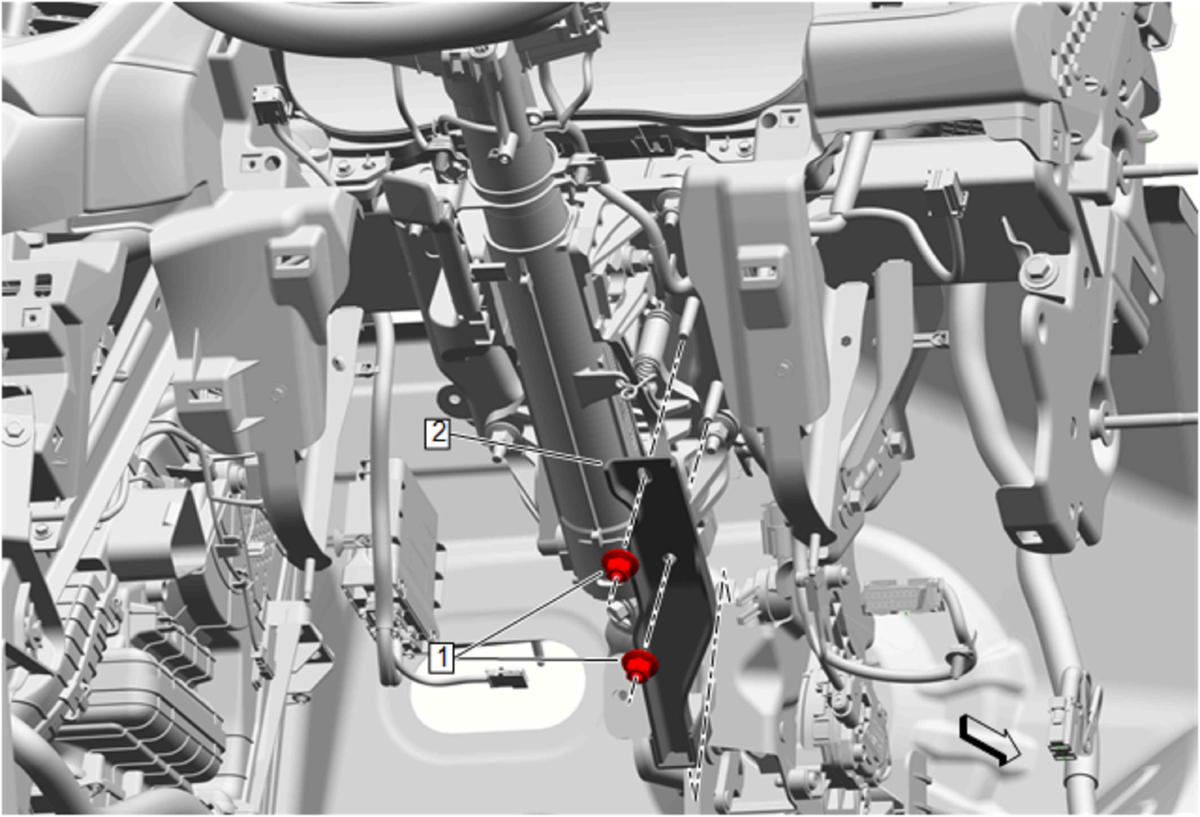

  1. GM5086337Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Instrument Panel Tie Bar Nut (1) - Install and tighten [2x] 22 N.m (16 lb ft)

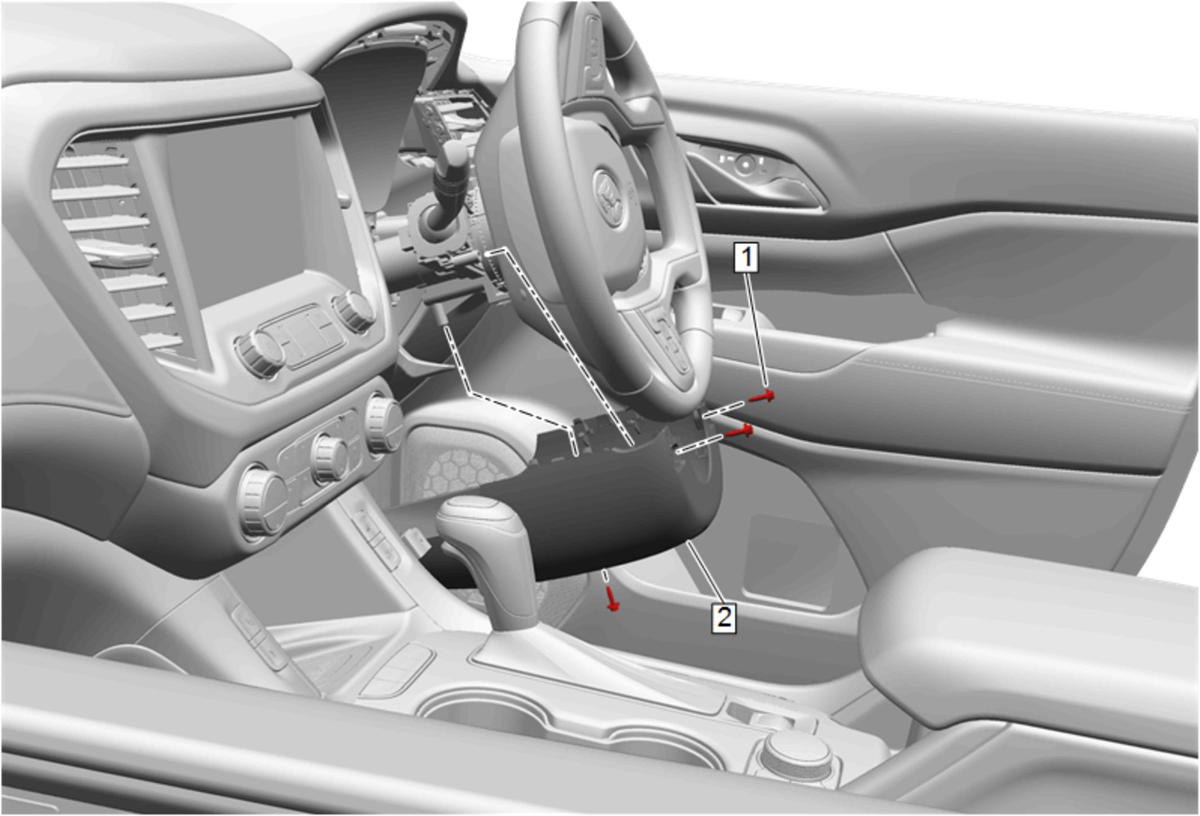

  3. GM5046727Courtesy of GENERAL MOTORS COMPANY

    Steering Column Lower Trim Cover (2) - Install - Steering Column Lower Trim Cover Replacement (N38) , or Steering Column Lower Trim Cover Replacement (N37)

  4. GM4407141Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Deflector (3) - Install - Instrument Panel Knee Bolster Deflector Replacement

  5. GM4406523Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement
