Installation Procedure

  1. GM5359273Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the front floor console (1) into the vehicle.

  2. Connect the electrical connectors.

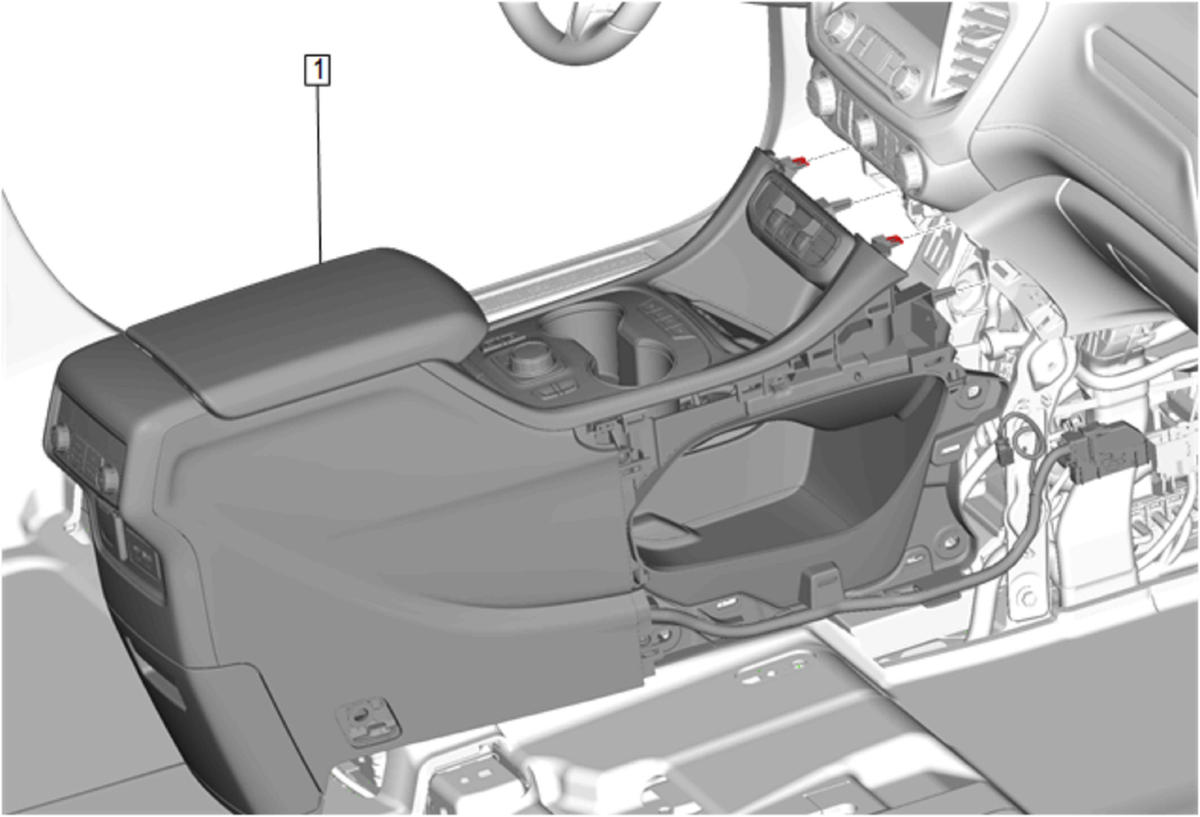

  3. GM5359272Courtesy of GENERAL MOTORS COMPANY

    Carefully guide the front floor console pins into the instrument panel.

  4. GM5358877Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Retainer Bolt (2) - Install and tighten [5x] 9 N.m (80 lb in)

  5. Front Floor Console Bolt Access Hole Cover (1) - Install
  6. GM5358874Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Retainer Bolt (2) - Install and tighten [5x] 9 N.m (80 lb in)

  7. Front Floor Console Bolt Access Hole Cover (1) - Install
  8. GM5346450Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (3) - Install - Front Floor Console Extension Panel Replacement - Right Side

  9. GM5344324Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (3) - Install - Front Floor Console Extension Panel Replacement - Left Side
