Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

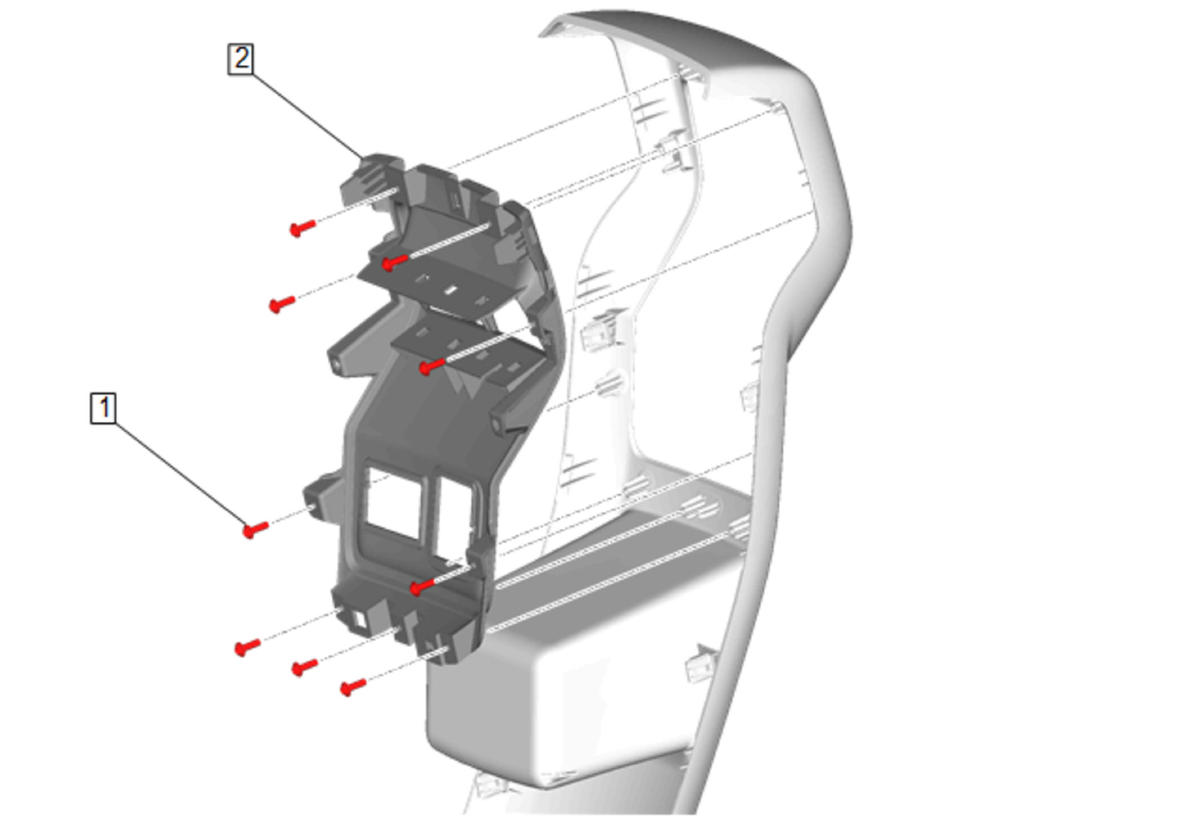

Front Floor Console Rear Trim Plate (2) - Install

CAUTION:

Front Floor Console Bolt (1) - Install and tighten [9x] 1.5 N.m (13 lb in)
Courtesy of GENERAL MOTORS COMPANY

Low Frequency Console Antenna (1) - Install - Low Frequency Console Antenna Replacement (All Terrain) , or Low Frequency Console Antenna Replacement (Except All Terrain) , or Low Frequency Console Antenna Replacement (GMC)
Courtesy of GENERAL MOTORS COMPANY

Dual Charge Only Receptacle (1) - Install - Dual Charge Only Receptacle Replacement
Courtesy of GENERAL MOTORS COMPANY

Accessory Power Receptacle (1) - Install - Accessory Power Receptacle Replacement (Quarter Trim Panel) , or Accessory Power Receptacle Replacement (Front Floor Console 110 HVPO) , or Accessory Power Receptacle Replacement (Front Floor Console APO)
Courtesy of GENERAL MOTORS COMPANY

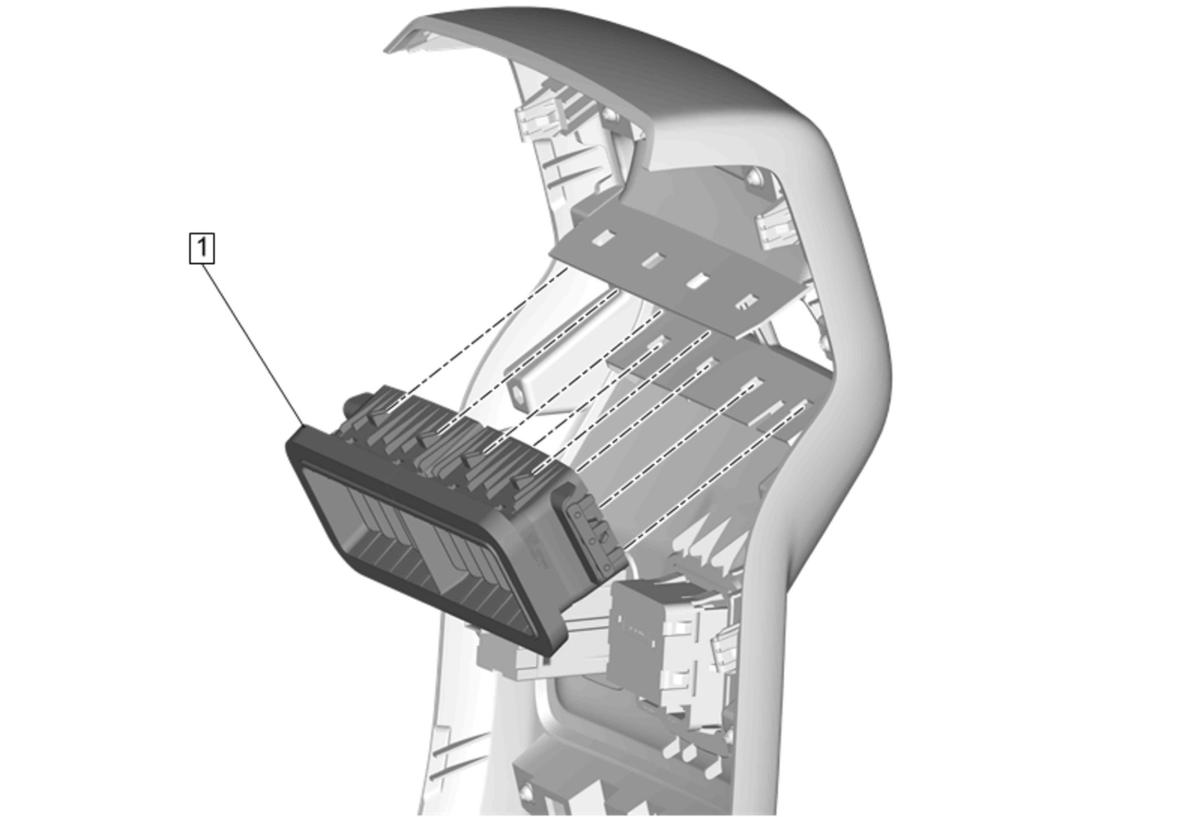

Front Floor Console Rear Air Outlet (1) - Install - Front Floor Console Rear Air Outlet Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Trim Panel (1) - Install - Front Floor Console Rear Trim Panel Replacement (with Rear Vent)
