Lower Control Arm Ball Joint Inspection

Special Tools

GE-8001  Dial Indicator Set

Equivalent regional tools:Special Tools

NOTE:
• The vehicle must rest on a level surface.
• The vehicle must be stable. Do not rock the vehicle on the floor stands.
1. Raise and support the vehicle. Lifting and Jacking the Vehicle
2. Clean and inspect the lower ball joint seal for cuts or tears. If the lower ball joint seal is damaged, replace the front lower control arm. Lower Control Arm Replacement

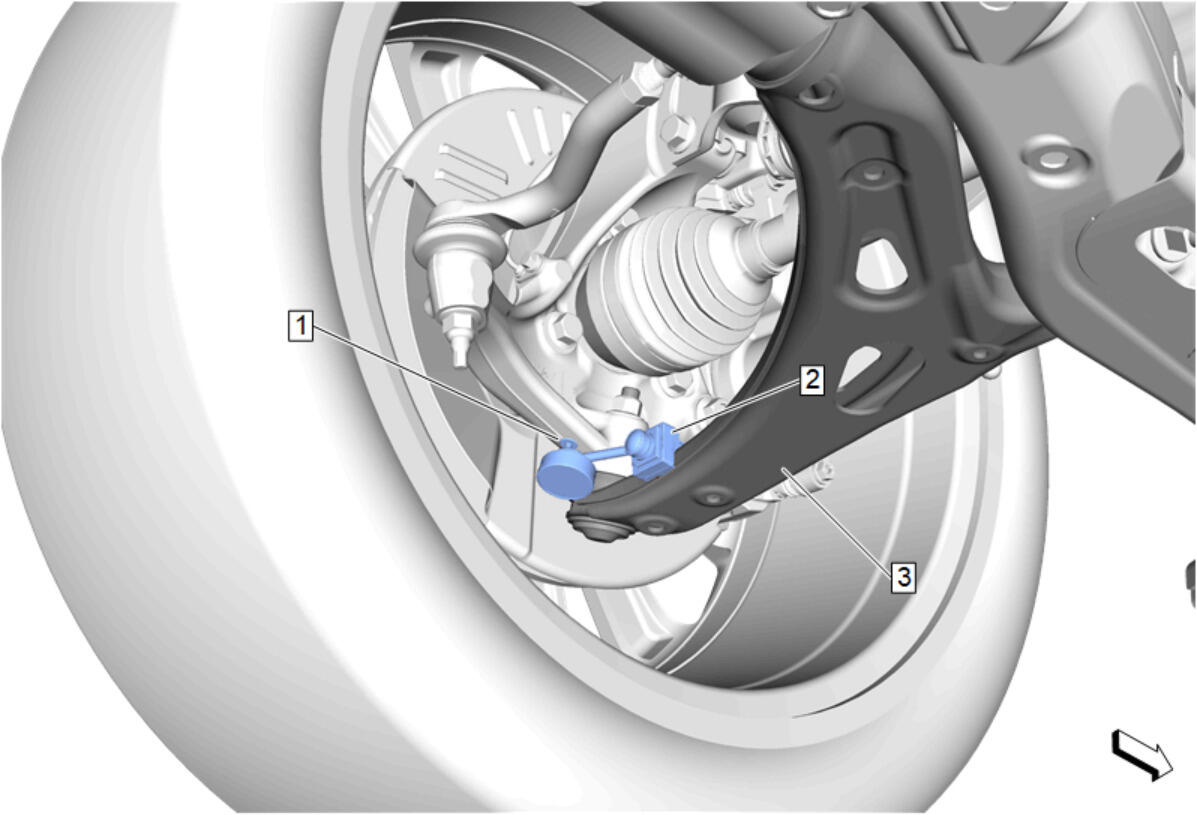

3. Courtesy of GENERAL MOTORS COMPANY

   Install the base (2) of the GE-8001  Dial Indicator Set, or suitable dial indicator to the front lower control arm (3).

4. Install the dial indicator of the GE-8001  Dial Indicator Set with the contact point (1) positioned at the steering knuckle.
CAUTION:

When working around ball joints, visually inspect the ball joint boots before and after service work is performed to ensure no damage has occurred. If damage to the boot is observed, the ball joint must be replaced.

5. Lift the front lower control arm (3) toward the steering knuckle and zero the dial indicator.
6. Pull down on the front lower control arm (3) and record the dial indicator reading.
7. If the dial indicator reading is more than 0.50 mm (0.020 in), replace the front lower control arm. Lower Control Arm Replacement
8. Remove the support and lower the vehicle.
