Installation Procedure

WARNING: This page is about a different variant/trim than selected.

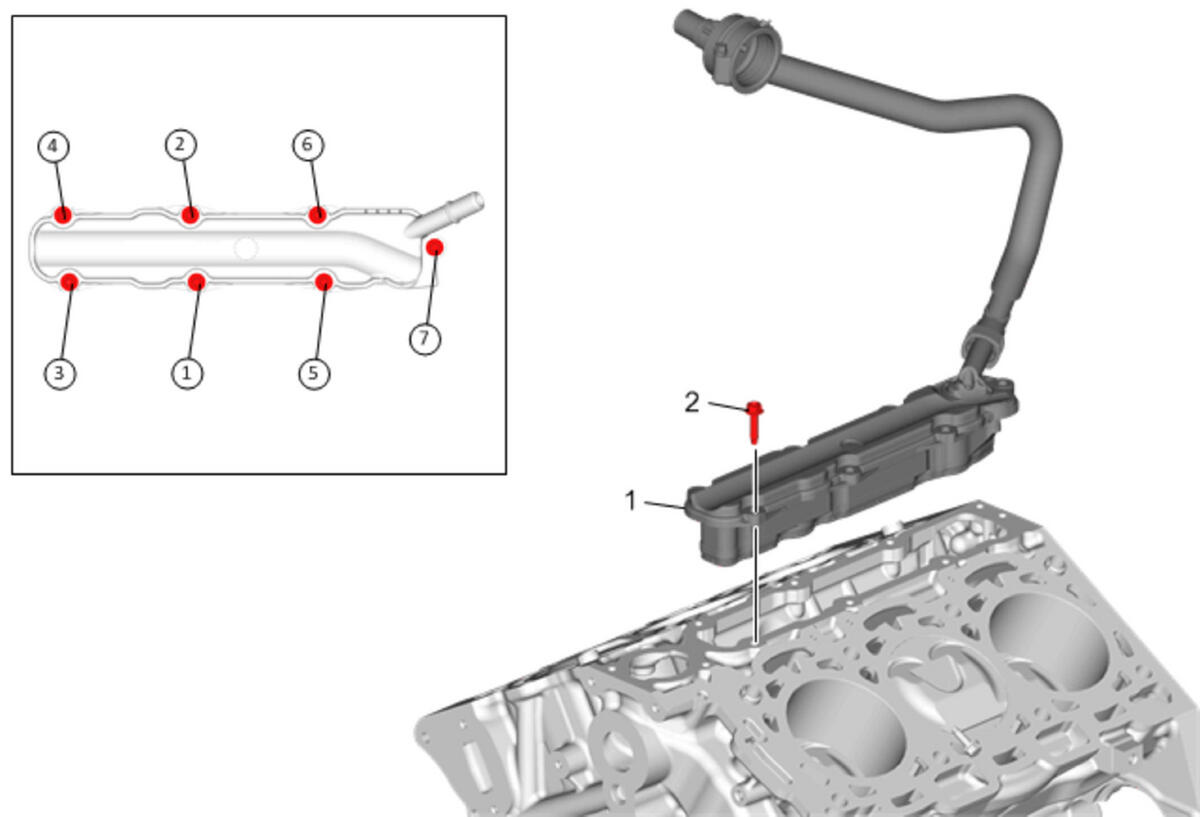

  1. Fig 1: Identifying Positive Crankcase Ventilation Oil Separator And Bolts With Tightening Sequence
    GM4236122Courtesy of GENERAL MOTORS COMPANY

    Positive Crankcase Ventilation Oil Separator (1) - Install

  2. Positive Crankcase Ventilation Oil Separator Bolt (2) - Install and tighten in sequence [7x] 10 N.m (89 lb in)
  3. Water Outlet - Install - Water Outlet Replacement (LGX)
  4. Fuel Injection Fuel Rail Assembly - Install - Fuel Injection Fuel Rail Assembly Replacement - Bank 2
  5. Fuel Injection Fuel Rail Assembly - Install - Fuel Injection Fuel Rail Assembly Replacement - Bank 1
