Removal Procedure

WARNING: This page is about a different variant/trim than selected.

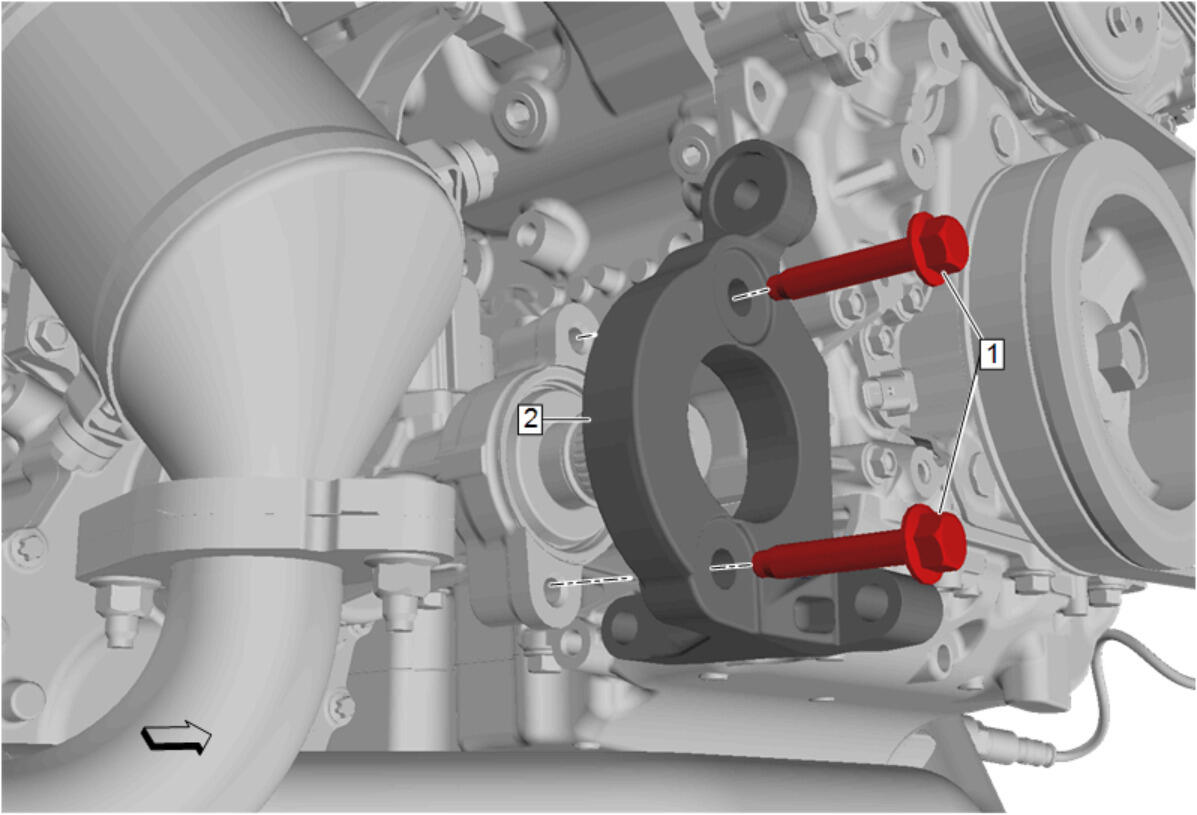

  1. GM5210771Courtesy of GENERAL MOTORS COMPANY

    Transfer Case Bracket (2) - Remove - Transfer Case Bracket Replacement (LGX)

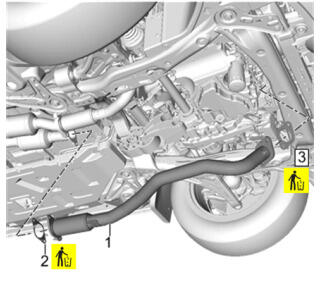

  2. GM4286423Courtesy of GENERAL MOTORS COMPANY

    Exhaust Front Pipe-Bank 2 (1) - Remove - Exhaust Front Pipe Replacement (Bank 2, LGX)

  3. Drain the engine oil. Engine Oil and Oil Filter Replacement

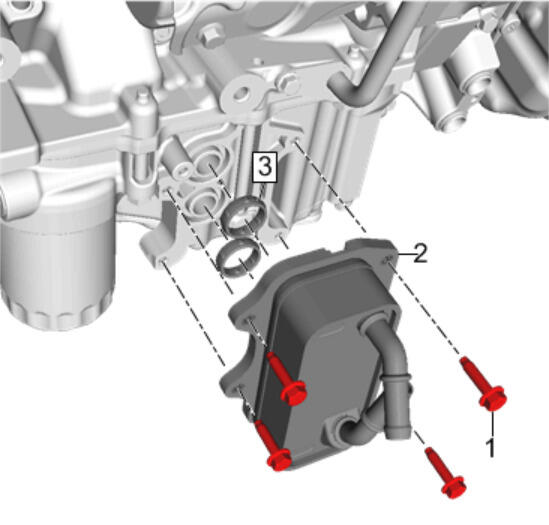

  4. GM4288994Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Cooler (2) - Remove - Engine Oil Cooler Replacement (LGX)

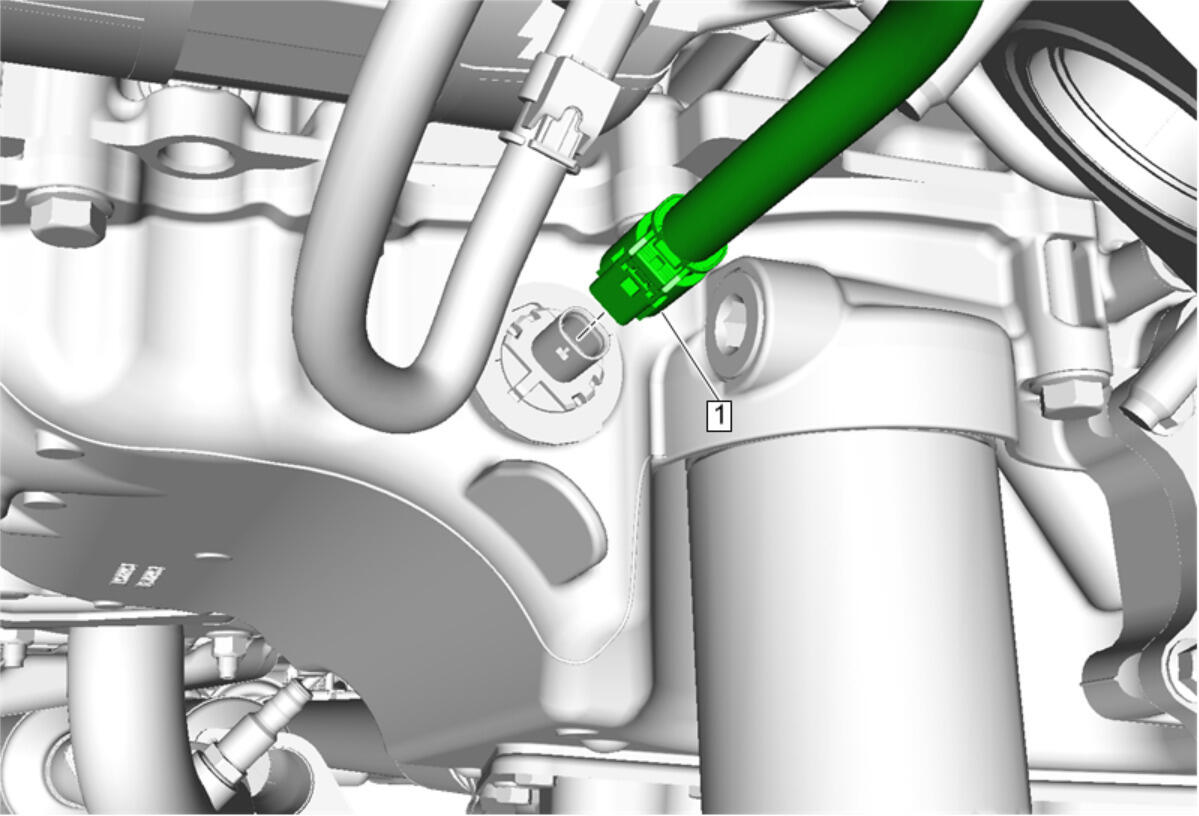

  5. GM4316526Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Engine Oil Level Indicator Switch - Disconnect

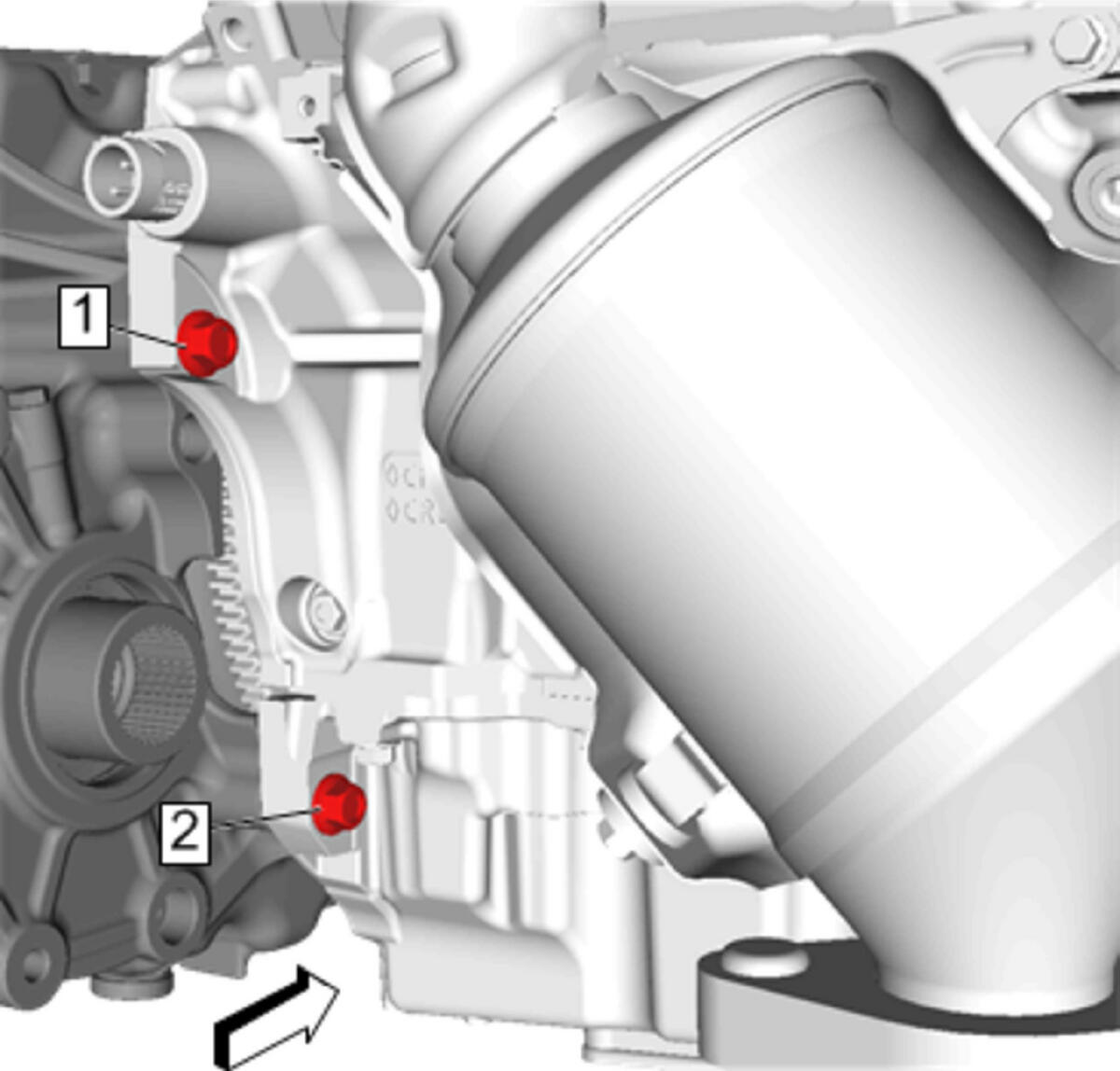

  6. GM4291043Courtesy of GENERAL MOTORS COMPANY

    Transmission Bolt (2) - Remove

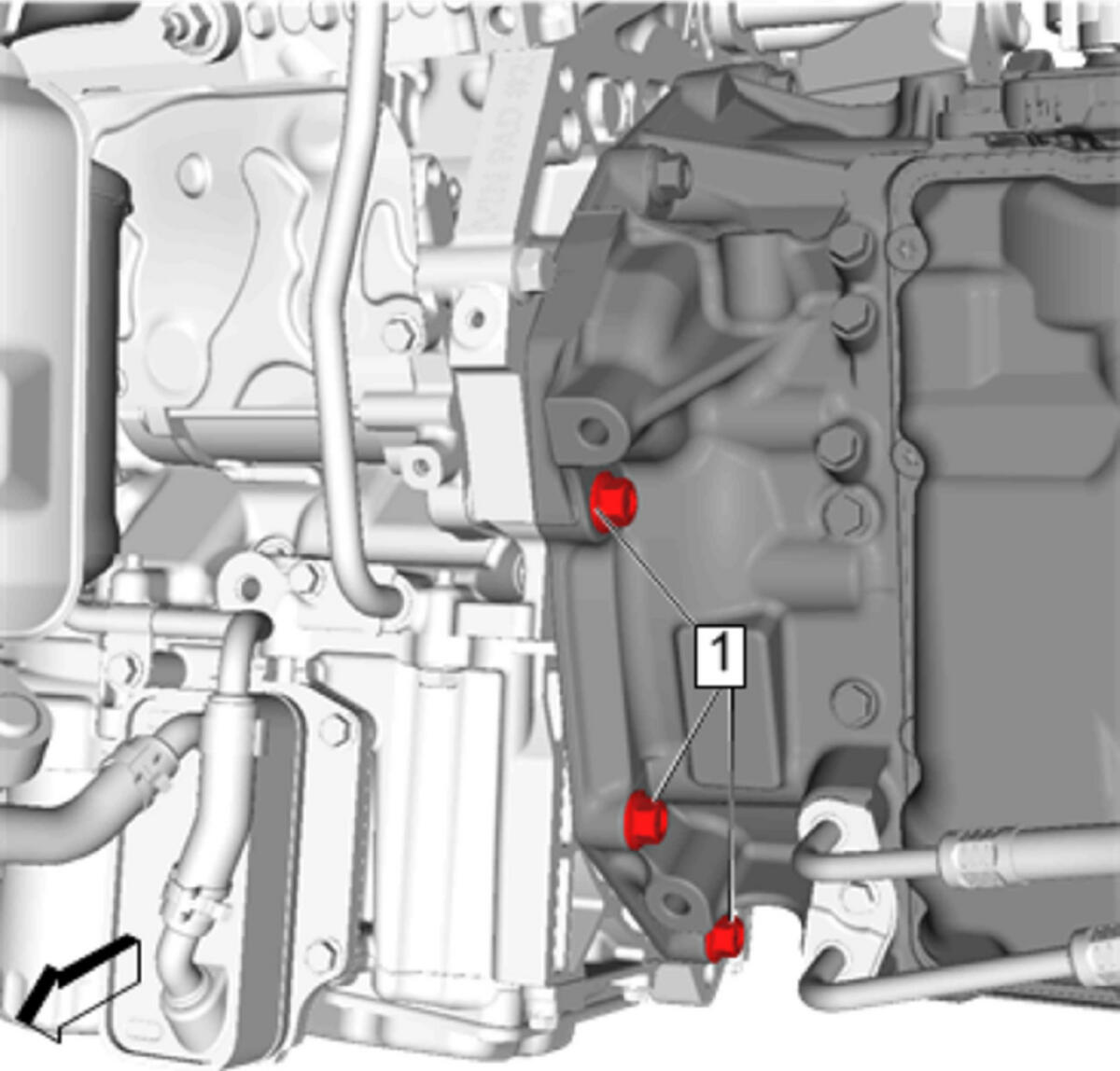

  7. GM4291032Courtesy of GENERAL MOTORS COMPANY

    Transmission Bolt (1) - Remove [3x]

  8. GM4232663Courtesy of GENERAL MOTORS COMPANY

    Oil Pan Bolt (1-5) - Remove [17x]

  9. Oil Pan (6) - Remove
  10. Clean, inspect, and overhaul the oil pan as needed. Oil Pan Overhaul
