Assemble Procedure
WARNING: This page is about a different variant/trim than selected.
-
Courtesy of GENERAL MOTORS COMPANY

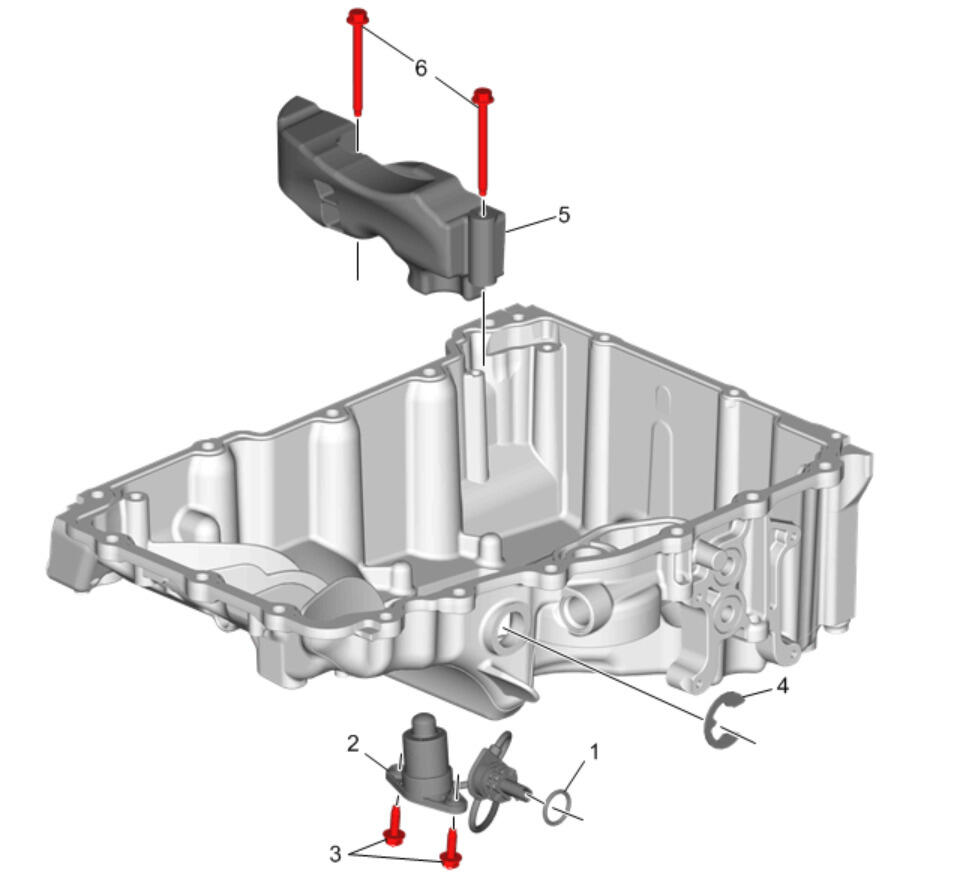

Engine Oil Level Indicator Switch O-Ring Seal (1) - Install NEW
- Engine Oil Level Indicator Switch (2) - Install
- Engine Oil Level Indicator Switch Bolt (3) - Install [2x] - Engine Oil Level Sensor and/or Switch Replacement
- Engine Oil Level Switch Clip (4) - Install
- Oil Pan Baffle (5) - Install
- Oil Pan Baffle Bolt (6) - Install and tighten [2x] 10 N.m (89 lb in)
-

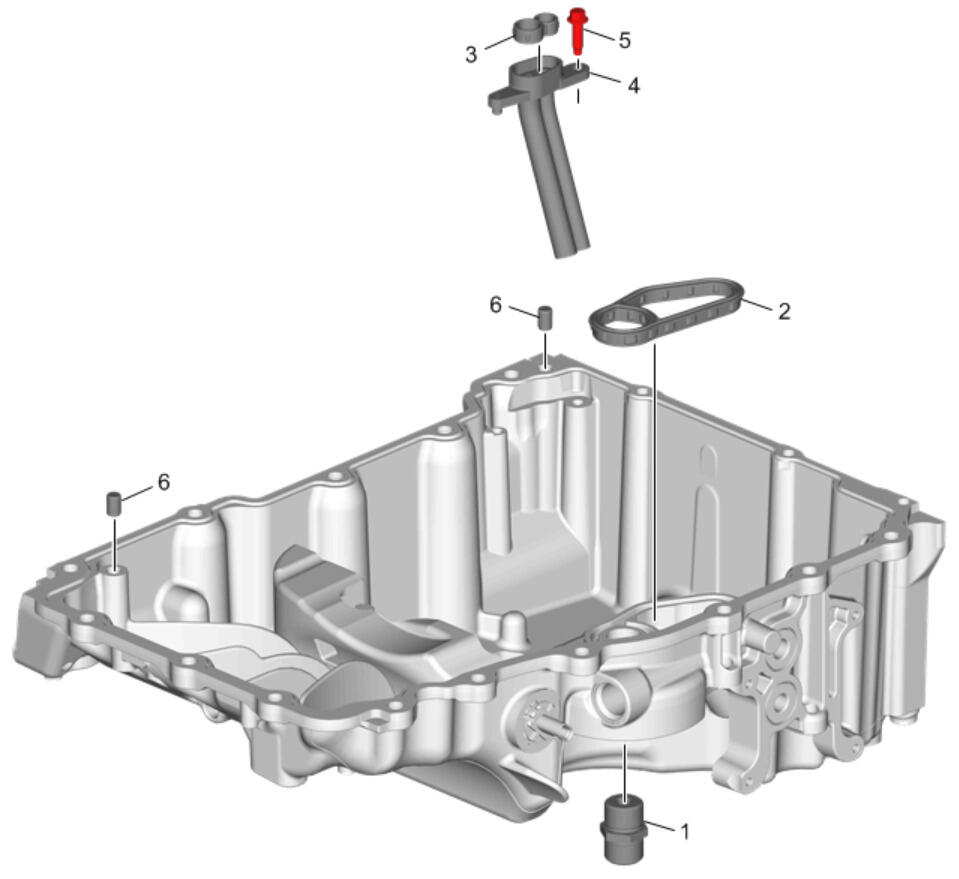

Fig 2: Exploded View Of Oil Filter Adapter Fitting, Oil Pan High Pressure Seal, Positive Crankcase Ventilation Oil Separator Drain And Dowel Pins
Courtesy of GENERAL MOTORS COMPANY
Oil Filter Adapter Fitting (1) - Install and tighten to 50 N.m (37 lb ft)
- Oil Pan High Pressure Port Seal (2) - Install NEW
- Positive Crankcase Ventilation Oil Separator Seal (3) - Install NEW
- Positive Crankcase Ventilation Oil Separator (4) - Install
- Positive Crankcase Ventilation Oil Separator Bolt (5) - Install and tighten to 10 N.m (89 lb in)
- Dowel Pin (6) - Install
-
Fig 3: Exploded View Of Lower Oil Pan, Drain Plug And Oil Filter Components With Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY
NOTE:Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant
Apply sealant (1) to the NEW lower oil pan. Adhesives, Fluids, Lubricants, and Sealers
- Lower Oil Pan (2) - Install NEW
- Lower Oil Pan Bolt (3) - Install and tighten in sequence [11x] 10 N.m (89 lb in)
- Oil Pan Drain Plug Seal (4) - Install NEW
- Oil Pan Drain Plug (5) - Install and tighten to 25 N.m (18 lb ft)
- Install a NEW oil filter and tighten 3/4 to 1 full turn after the gasket makes contact with the sealing surface on the filter mounting flange.
- Oil Gallery Plug (7) - Install
CAUTION:
Refer to Fastener Caution .
