Removal Procedure

WARNING: This page is about a different variant/trim than selected.

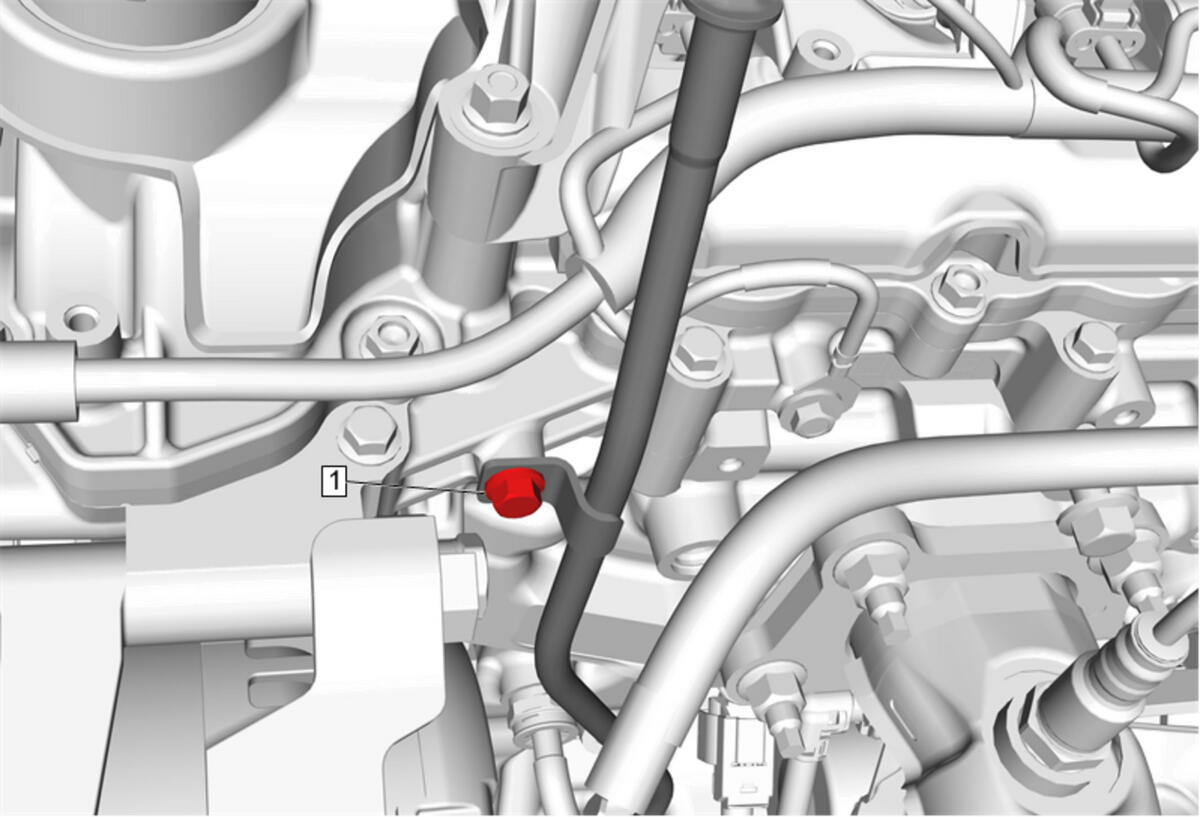

  1. GM4298078Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube Bracket Bolt (1) - Remove

  2. Detach wiring harness retainers as necessary.

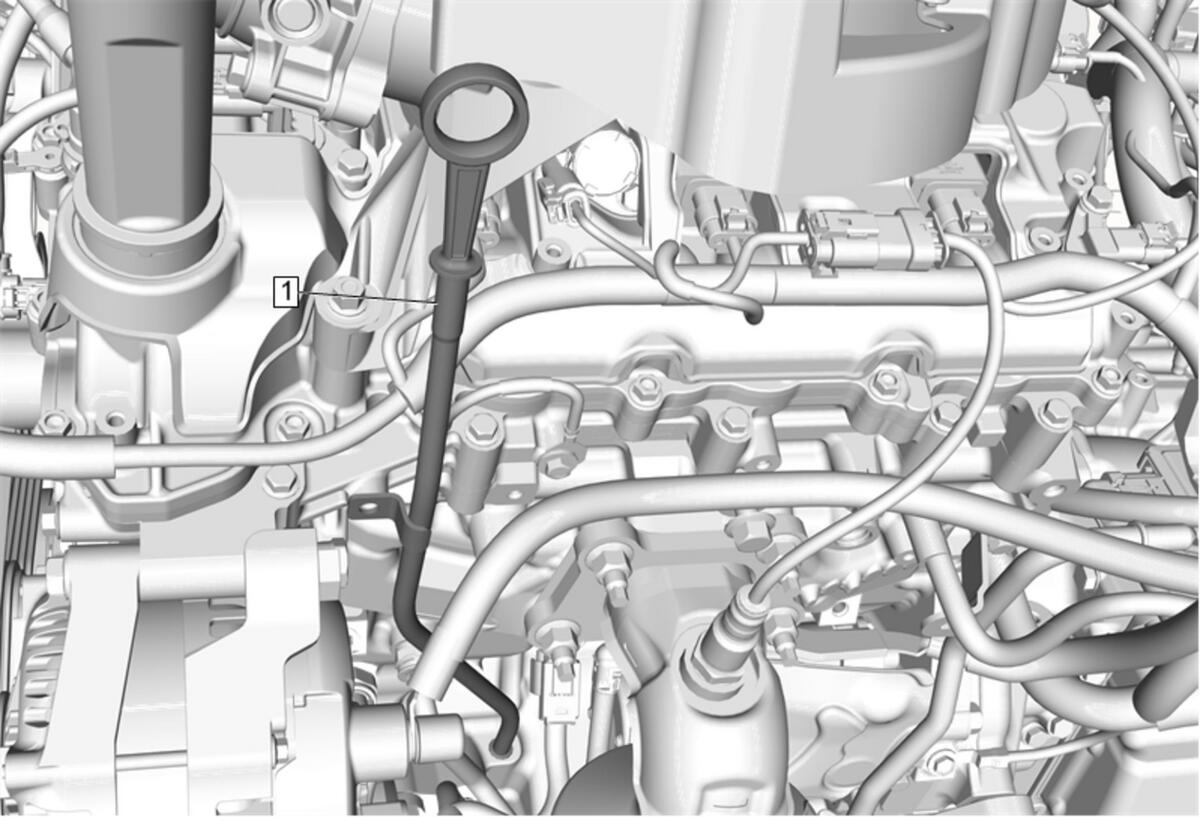

  3. GM4298084Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube (1) - Remove

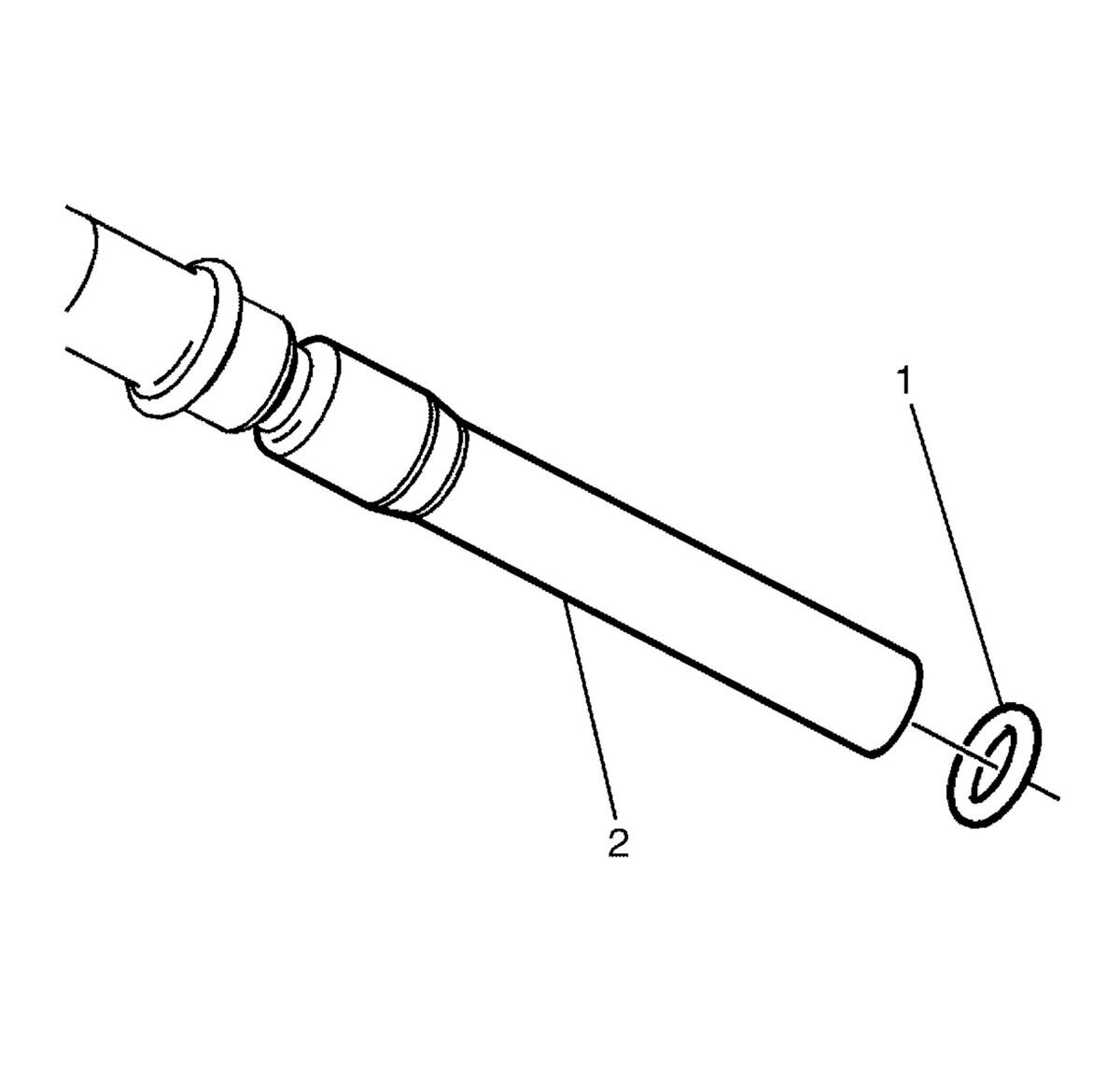

  4. GM1958778Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The oil level indicator tube seal is a single use item.

    Remove the O-ring (1) from the oil level indicator tube (2) and DISCARD.
