Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Lifting and Jacking the Vehicle
  2. Drain the engine oil into a suitable container. Engine Oil and Oil Filter Replacement

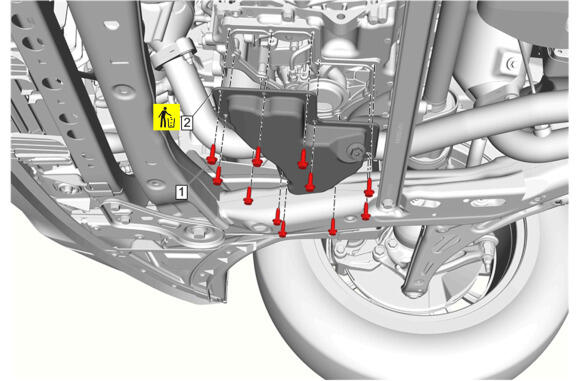

  3. GM4295236Courtesy of GENERAL MOTORS COMPANY

    Lower Oil Pan Bolt (1) - Remove [11x]

  4. Lower Oil Pan (2) - Remove and DISCARD
