Installation Procedure
WARNING: This page is about a different variant/trim than selected.
- NOTE:
Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant

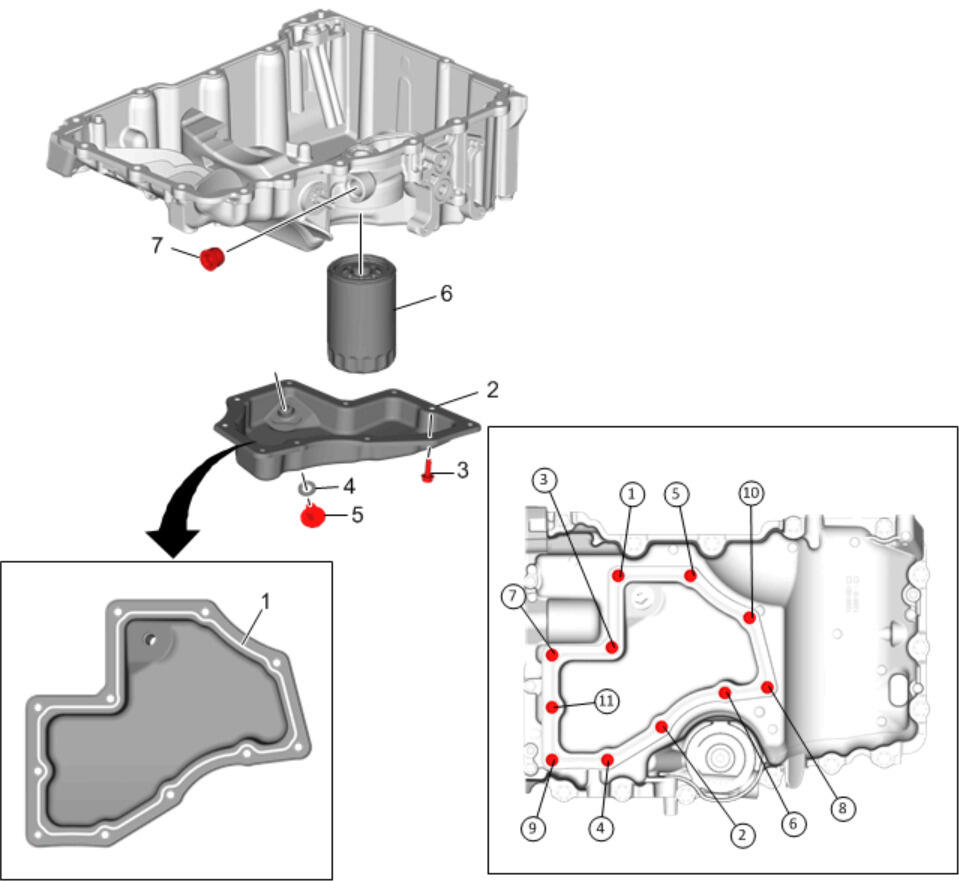

Apply sealant (1) to the NEW lower oil pan. Adhesives, Fluids, Lubricants, and Sealers
- Lower Oil Pan (2) - Install NEW
- Lower Oil Pan Bolt (3) - Install and tighten in sequence [11x] 10 N.m (89 lb in)
- Fill the engine oil to the proper level with NEW engine oil.
- Start the engine and inspect for leaks.
CAUTION:
Refer to Fastener Caution .
