Removal Procedure
WARNING: This page is about a different variant/trim than selected.
Intake Manifold Cover - Remove - Intake Manifold Cover Replacement .
Throttle Body Assembly - Remove - Throttle Body Assembly Replacement

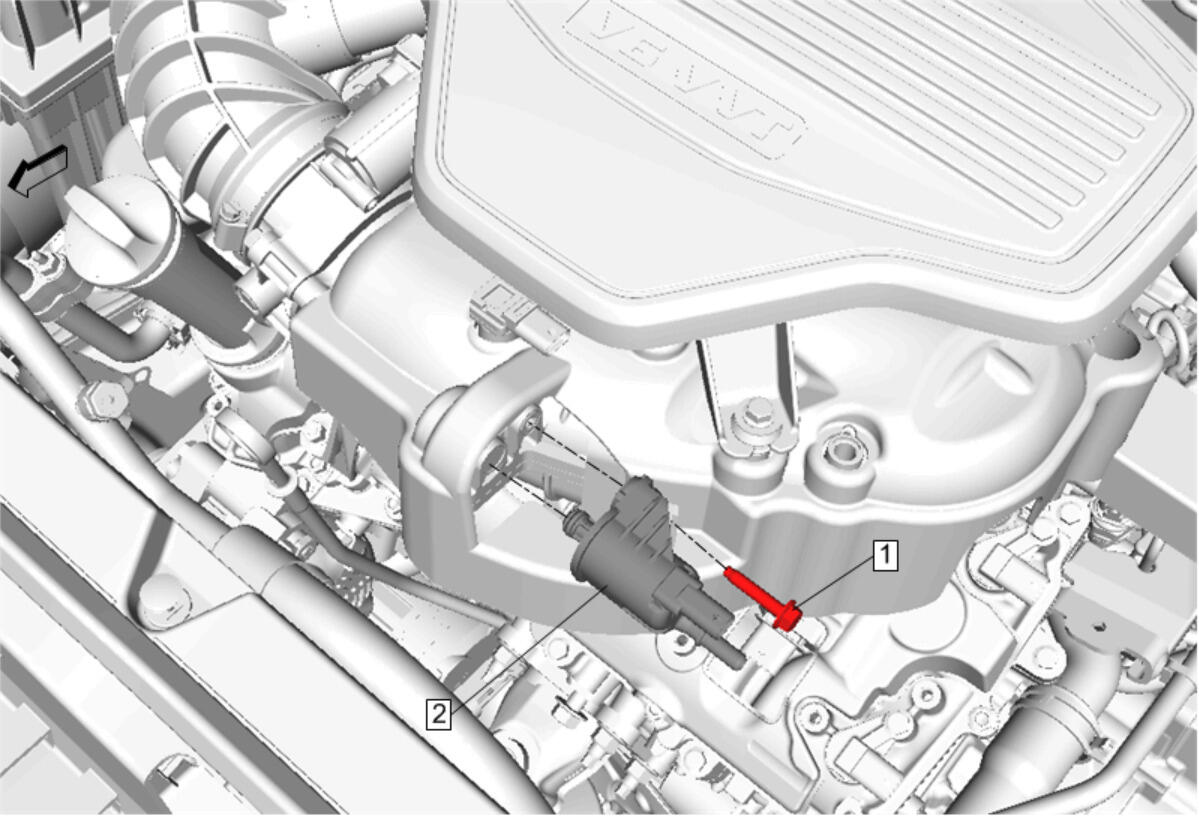

Evaporative Emission Canister Purge Solenoid Valve - Remove - Evaporative Emission Canister Purge Solenoid Valve Replacement

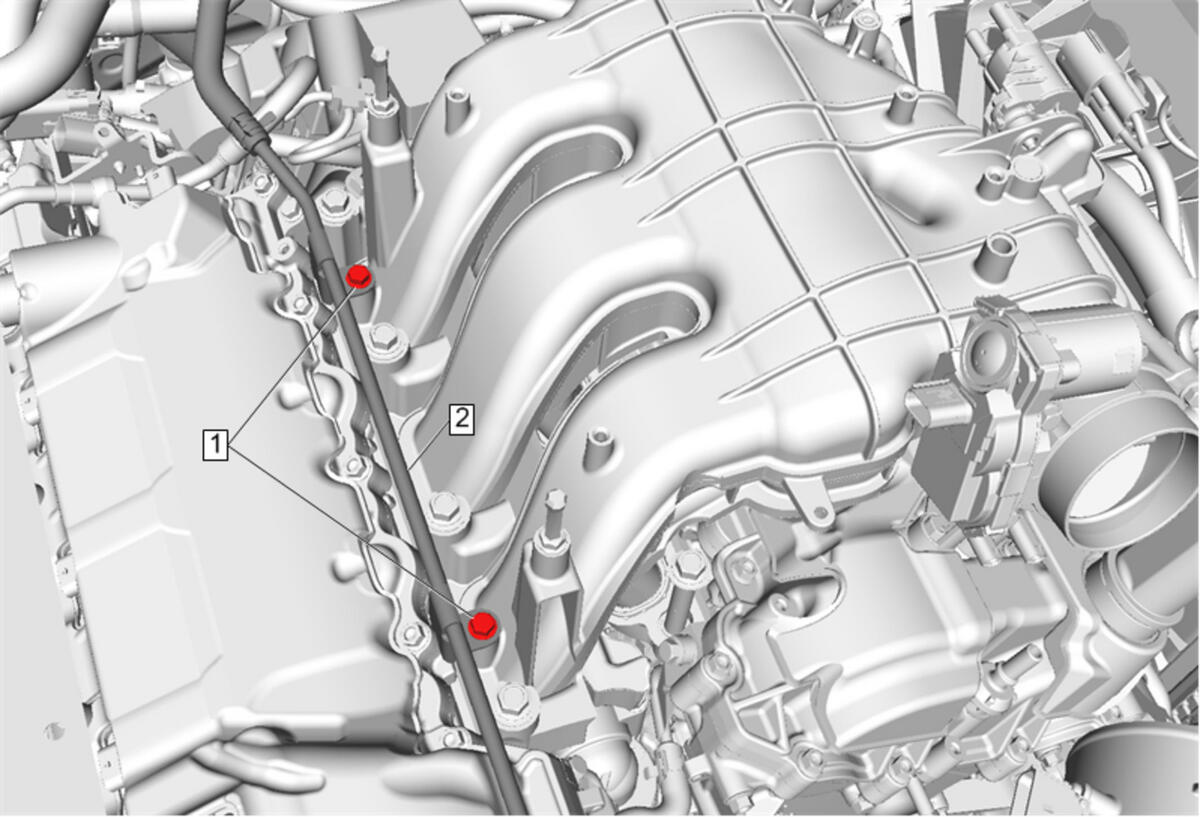

Radiator Surge Tank Outlet Pipe Bolt (1) - Remove [2x]
- Radiator Surge Tank Outlet Pipe (2) - Reposition

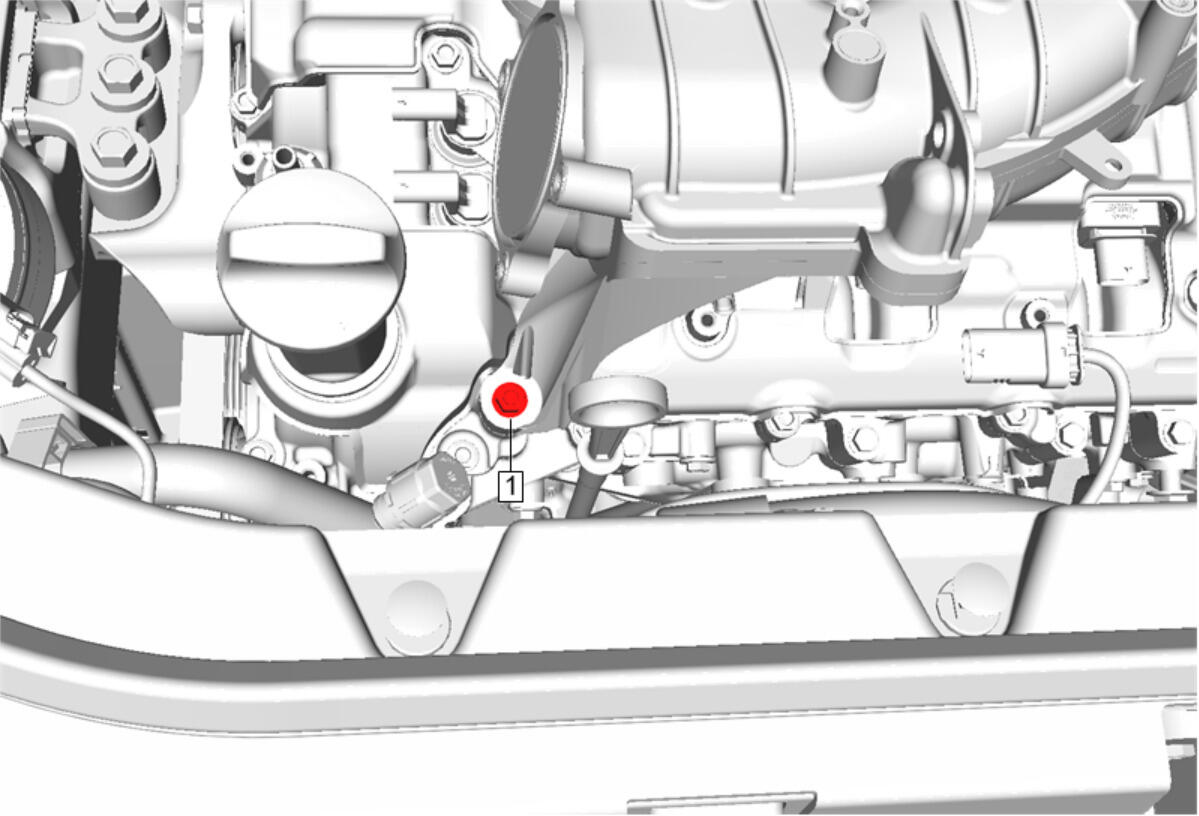

Intake Manifold Bolt (1) - Remove

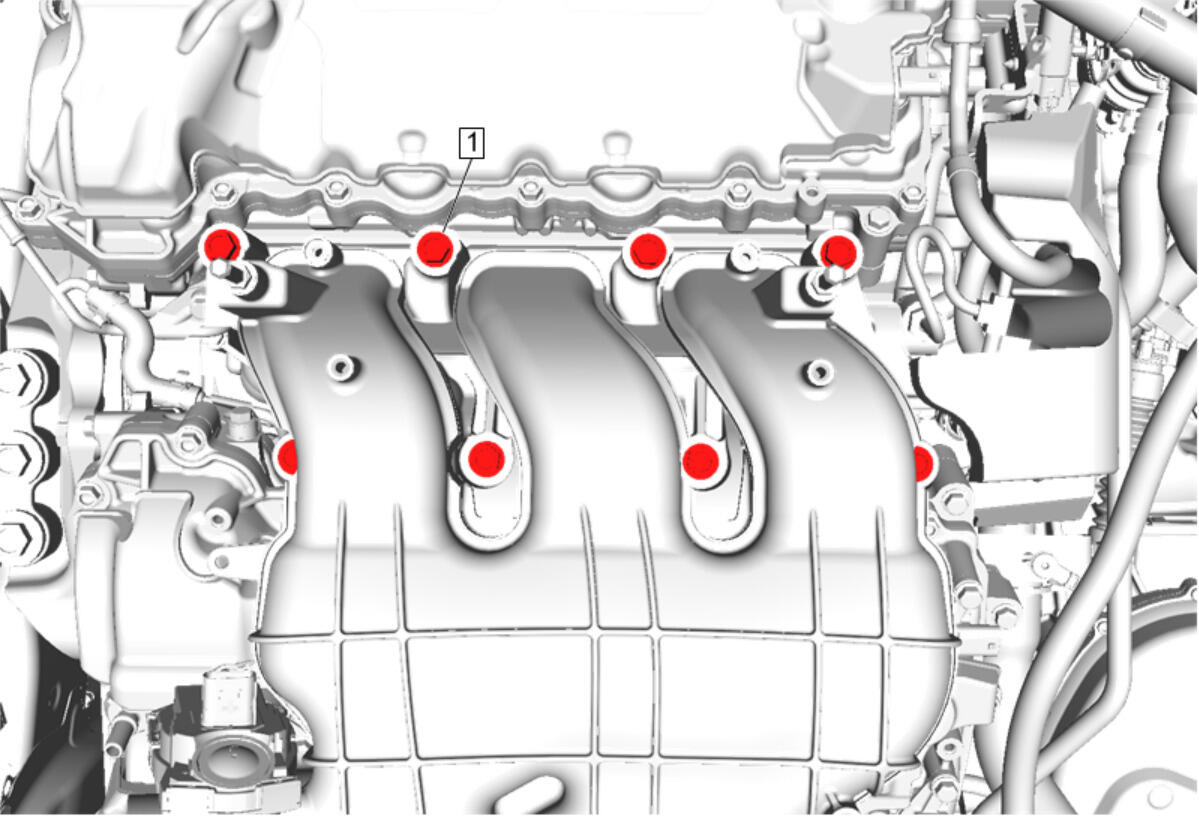

Intake Manifold Bolt (1) - Remove [8x]
- Remove the intake manifold.
- Cover the cylinder head passages in order to prevent dirt or debris from entering the passages.

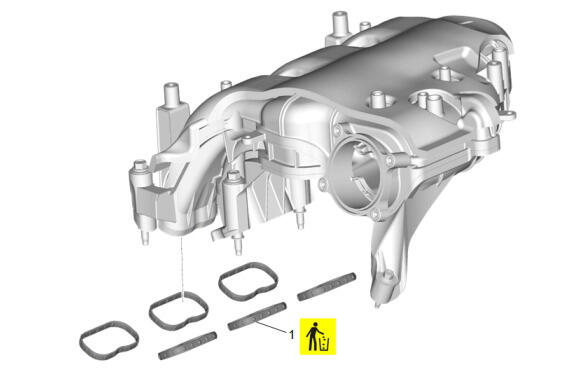

Intake Manifold Gasket (1) - Remove and DISCARD
- Clean, inspect, and overhaul the intake manifold as needed. Intake Manifold Overhaul
