Disassemble Procedure

WARNING: This page is about a different variant/trim than selected.

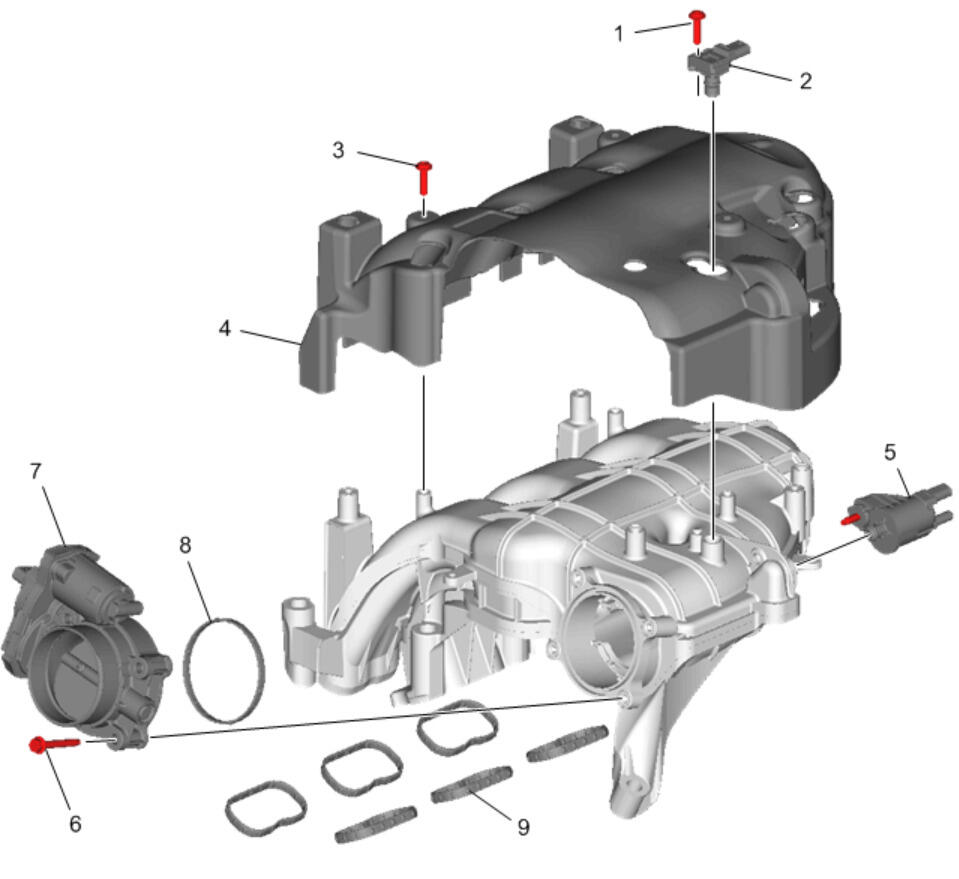

  1. Fig 1: Exploded View Of Intake Manifold Disassemble Components
    GM4232629Courtesy of GENERAL MOTORS COMPANY

    Manifold Absolute Pressure Sensor Bolt (1) - Remove

  2. Manifold Absolute Pressure Sensor (2) - Remove
  3. Intake Manifold Insulator Bolt (3) - Remove [3x]
  4. Intake Manifold Insulator (4) - Remove
  5. Evaporative Emission Canister Purge Solenoid Valve (5) - Remove
  6. Throttle Body Bolt (6) - Remove [4x]
  7. Throttle Body (7) - Remove
  8. Throttle Body Gasket (8) - Remove and DISCARD
  9. Intake Manifold Seal (9) - Remove and DISCARD
