Engine Support Fixture Installation - Transmission Mount, Engine Mount and Engine Mount Bracket Procedures

WARNING: This page is about a different variant/trim than selected.

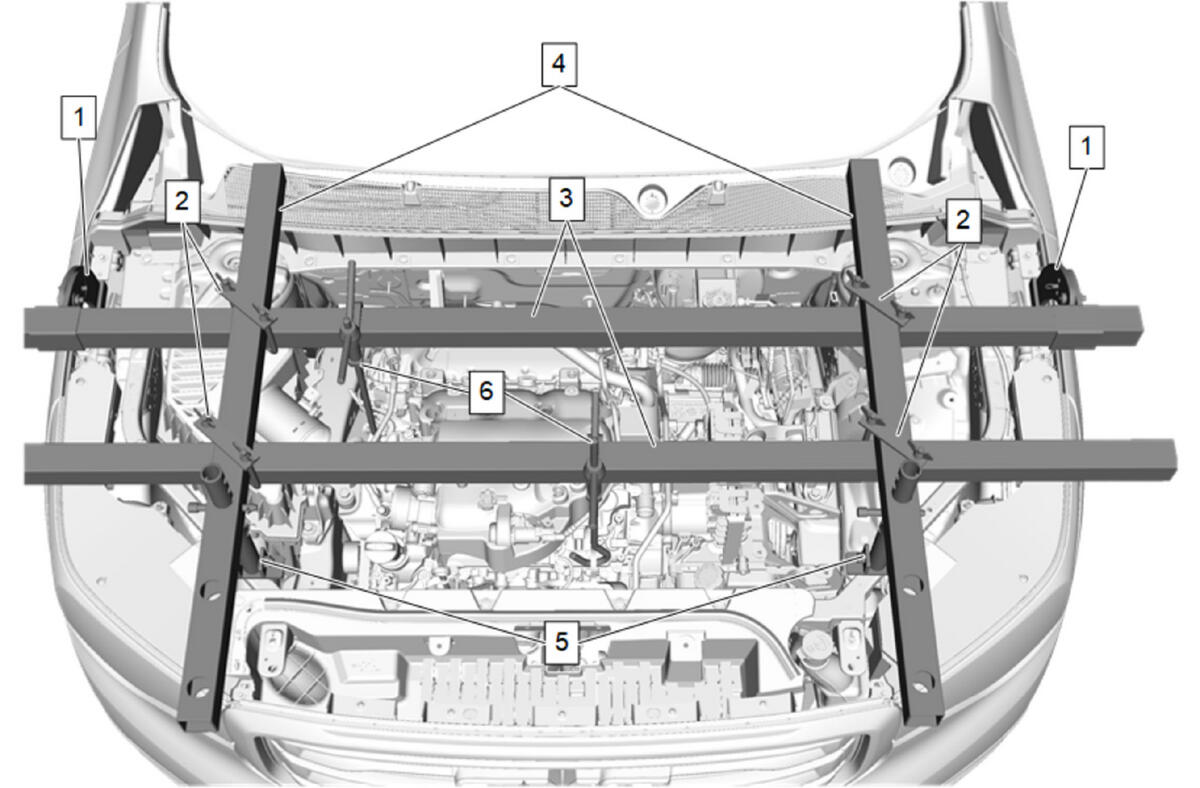

Fig 1: Identifying Engine Support Fixture Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Hood Replacement Air Cleaner Outlet Duct Replacement Air Cleaner Assembly Replacement Intake Air Splash Shield Replacement Special Tools EN-28467-50 Engine Support Hook EN-28467-300 Engine Support Fixture Adapters EN-51007-1 Main Support Beam EN-51007-3 Radiator Support Beam EN-51007-4 Clamp EN-51007-5 Support Leg, Front
1	EN-28467-300 Engine Support Fixture Adapters Procedure Install EN-28467-300 Engine Support Fixture Adapters to frame as shown.
2	EN-51007-4 Clamp
3	EN-51007-1 Main Support Beam [2x]
4	EN-51007-3 Radiator Support Beam
5	EN-51007-5 Support Leg, Front
6	EN-28467-50 Engine Support Hook Procedure Hand-tighten the lift hook wing nuts securely to remove all slack from the engine support fixture assembly.
