Engine Support Fixture Installation - Intake Manifold

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

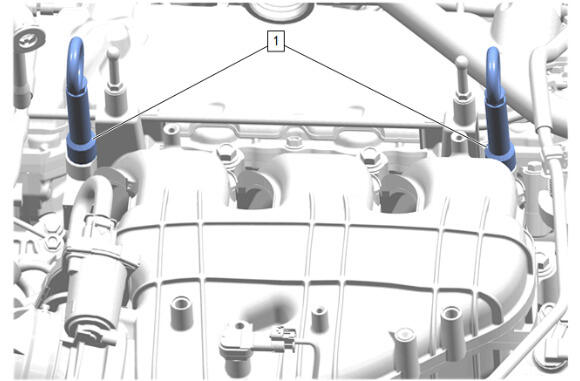

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Duct Replacement Remove the 2 outer most intake manifold bolts. Intake Manifold Replacement Install the 2 outer most intake manifold bolts. Intake Manifold Replacement Special Tools EN-52499 Engine Lift Bolt Set Equivalent regional tools: Special Tools
1	EN-52499 Engine Lift Bolt Set Procedure CAUTION: Refer to Fastener Caution . Install the EN-52499 Engine Lift Bolt Set to the intake manifold outer most bolt location shown. 25 N.m (18 lb ft)

Callout

Component Name

Preliminary Procedures

Special Tools

Equivalent regional tools: Special Tools

EN-52499 Engine Lift Bolt Set
Procedure

CAUTION:

Install the EN-52499 Engine Lift Bolt Set to the intake manifold outer most bolt location shown.
25 N.m (18 lb ft)
