Engine Support Fixture Installation - Engine Front Cover and Bank One Cylinder Head Procedures
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|
Engine Support Fixture Installation - Engine Front Cover and Bank One Cylinder Head Procedures
| Callout |
Component Name |
|
Preliminary Procedures
- Generator Replacement (LGX)
- Install the Engine Support Fixture as shown in Engine Support Fixture Installation - Transmission Mount, Engine Mount and Engine Mount Bracket Procedures
.
NOTE:
Relocate the forward engine lift bracket as shown.
Special Tools
- EN-36857
Engine Lift Bracket
Equivalent regional tools: Special Tools |

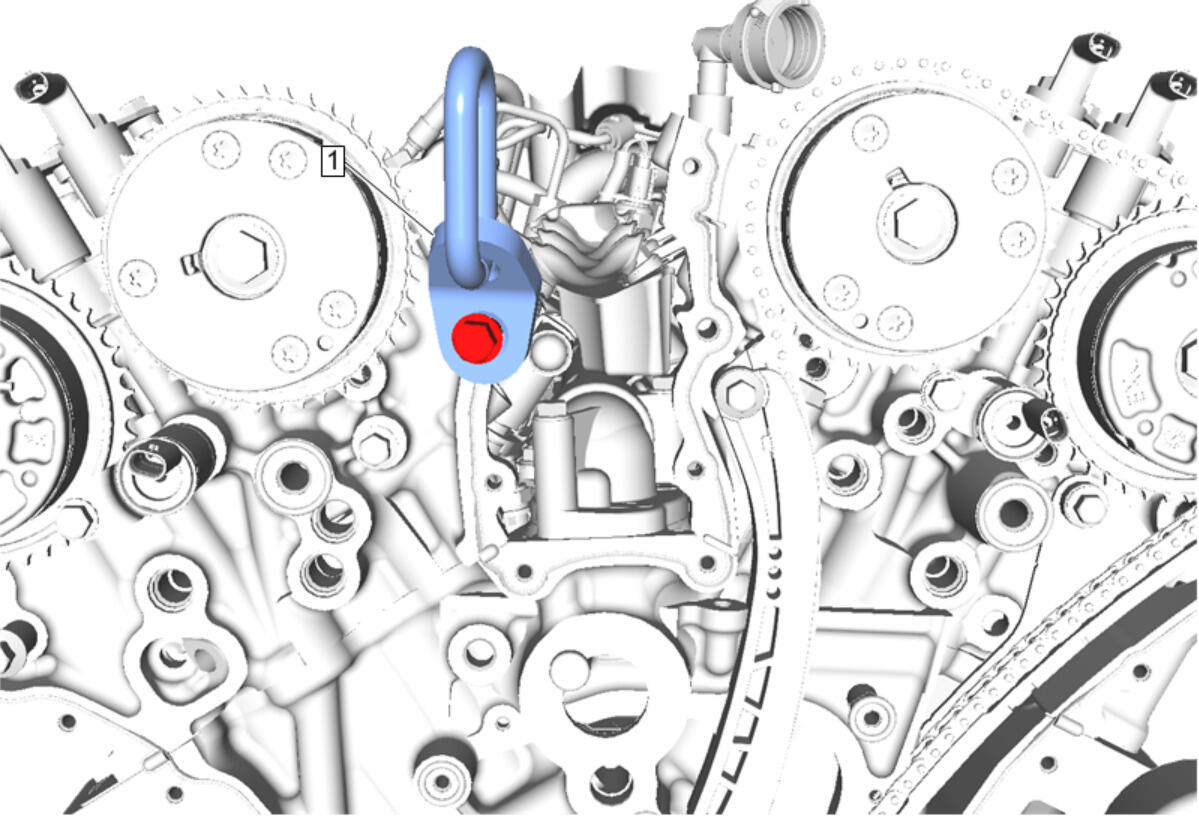

| 1 |
EN-36857
Engine Lift Bracket Procedure
- Install the EN-36857
Engine Lift Bracket as shown.
- Hand-tighten the lift hook wing nuts securely to remove all slack from the engine support fixture assembly.
|
