Engine Support Fixture Installation - Bank Two Cylinder Head

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Special Tools EN-36857 Engine Lift Bracket EN-52059 Engine Support Fixture Adapter Bolt - M10

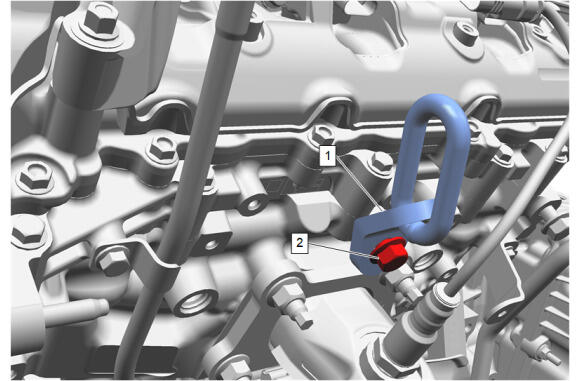

1	EN-36857 Engine Lift Bracket Procedure Use EN-52059 Engine Support Fixture Adapter Bolt - M10 to install a EN-36857 Engine Lift Bracket to the left cylinder head in the location shown. 65 N.m (48 lb ft)

Callout

Component Name

Special Tools

EN-36857 Engine Lift Bracket
EN-52059 Engine Support Fixture Adapter Bolt - M10

EN-36857 Engine Lift Bracket
Procedure
Use EN-52059 Engine Support Fixture Adapter Bolt - M10 to install a EN-36857 Engine Lift Bracket to the left cylinder head in the location shown.
65 N.m (48 lb ft)
